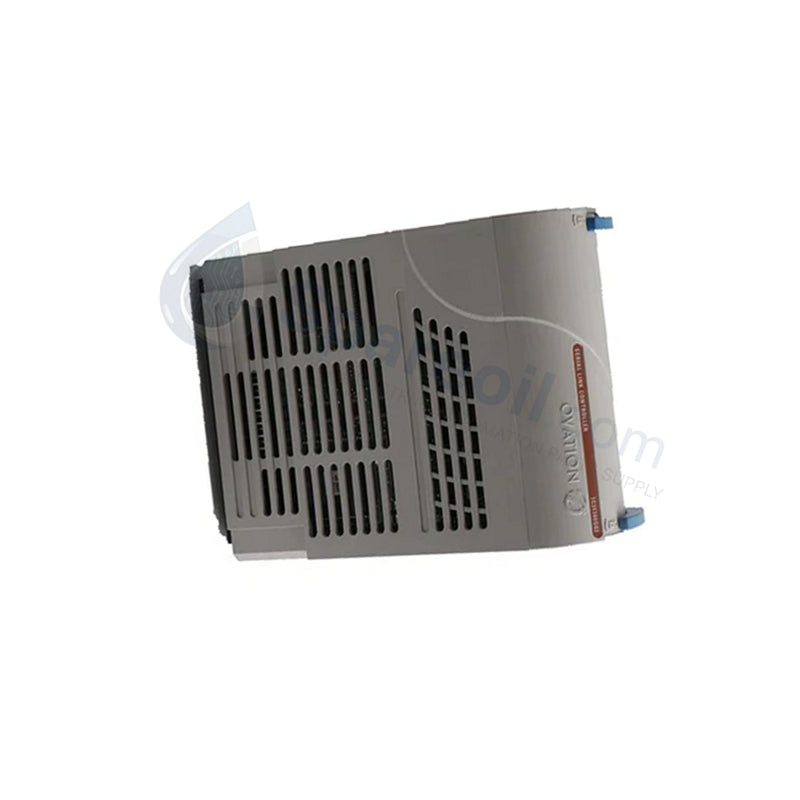

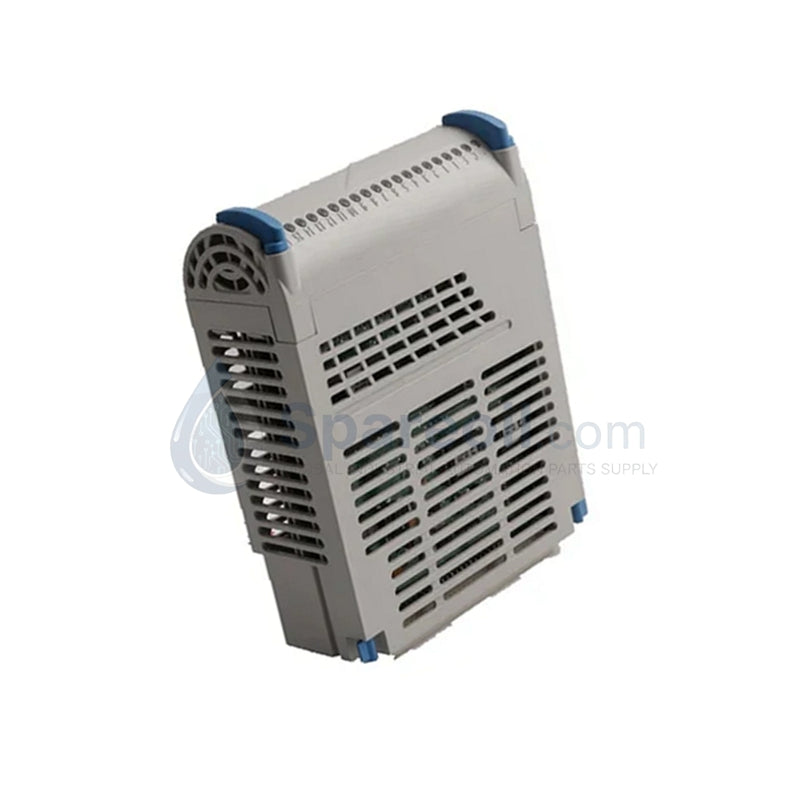

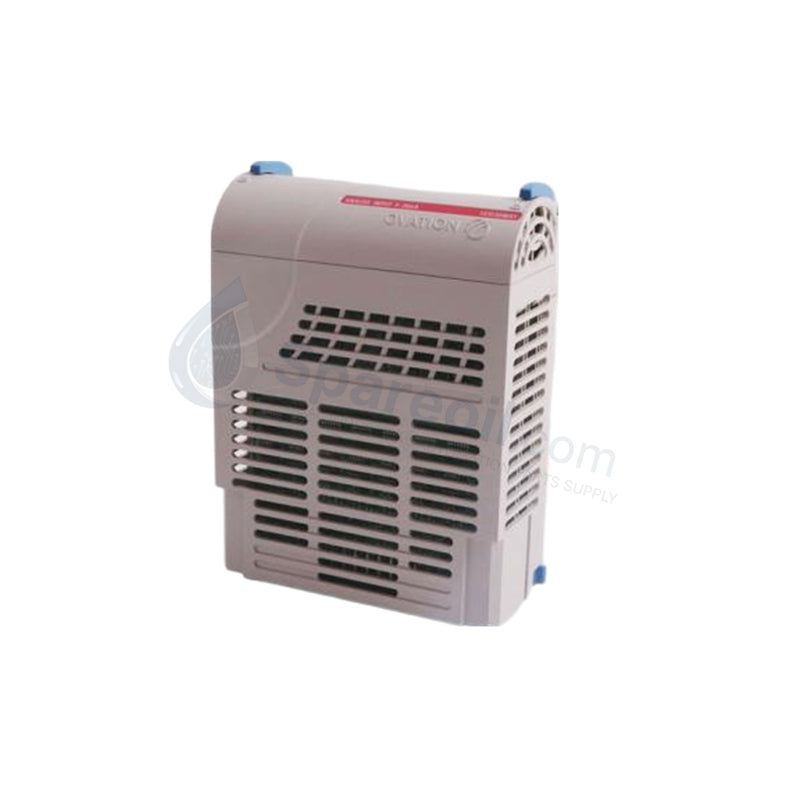

Emerson 1C31129G04 Ovation Series

Configured for Specific Technical Task in System/Network Name, the Emerson 1C31129G04 (1C31129G04 Analog Output Module) provides direct physical/electrical execution.

Hardware Specifications

Parameter Specification
Model 1C31129G04
Brand Emerson
Origin United States
Weight 0.3 kg
Dimensions 12.1 x 5.4 x 14 cm
Operating Temp -20 to +70 deg C
Power Consumption 24 VDC nominal (rack powered)
Output Channels 4 to 8 independent analog output channels
Signal Range Configurable 4-20 mA current loop or 0-10 VDC voltage
Resolution 12-bit digital-to-analog conversion
Accuracy +/-0.1% of full scale
Isolation Up to 2 kV channel-to-bus isolation
Protection Short-circuit, over-temperature, reverse-polarity protection

Process Control and DCS Instrumentation

The module utilizes an integrated 4-20 mA HART loop protocol to maintain field device communication interfaces. Channel-to-channel isolation prevents electrical cross-talk and ground loop currents from corrupting the 12-bit digital-to-analog conversion accuracy. Internal loop dynamics are managed via 24 VDC compliance voltage sourcing, eliminating external loop power requirements while maintaining structural loop integrity across high-impedance actuator circuits.

Frequently Asked Questions

Q: Does the 1C31129G04 support hot-swap operations during active DCS rack execution?

A: Yes, the module hardware design permits online hot-swapping under powered rack conditions without causing system shutdown or interrupting the operation of adjacent I/O modules on the same backplane.

Q: How does this specific variant handle loop-open fault detection?

A: The 1C31129G04 variant does not feature integrated real-time loop diagnostics or loop-open alarms. For configurations requiring active loop-open fault detection, the 1C31129G03 module must be specified instead.

Q: What are the electrical constraints regarding field loop power sourcing?

A: The module directly sources 24 VDC compliance voltage to the analog loops. External power supplies must not be wired in series with the field loop to prevent double-sourcing conflicts and damage to the output channels.

Field Installation Guidelines

  • Ventilation and Rack Clearance: High-frequency PWM regulators on the module generate heat during continuous duty cycles. Maintain unrestricted vertical airflow through the chassis and ensure the rack enclosure ambient temperature does not exceed +70 deg C.
  • Shield Grounding Protocol: Terminate all analog signal cable shields at the designated chassis ground busbar on the I/O terminal block. Do not ground the shield at both ends to eliminate the risk of induced ground loops.
  • Field Wiring Separations: Route low-voltage 4-20 mA / 0-10 VDC signal cables in dedicated, segregated cable trays away from high-voltage AC power lines and inductive motor control circuits to mitigate electromagnetic interference.
