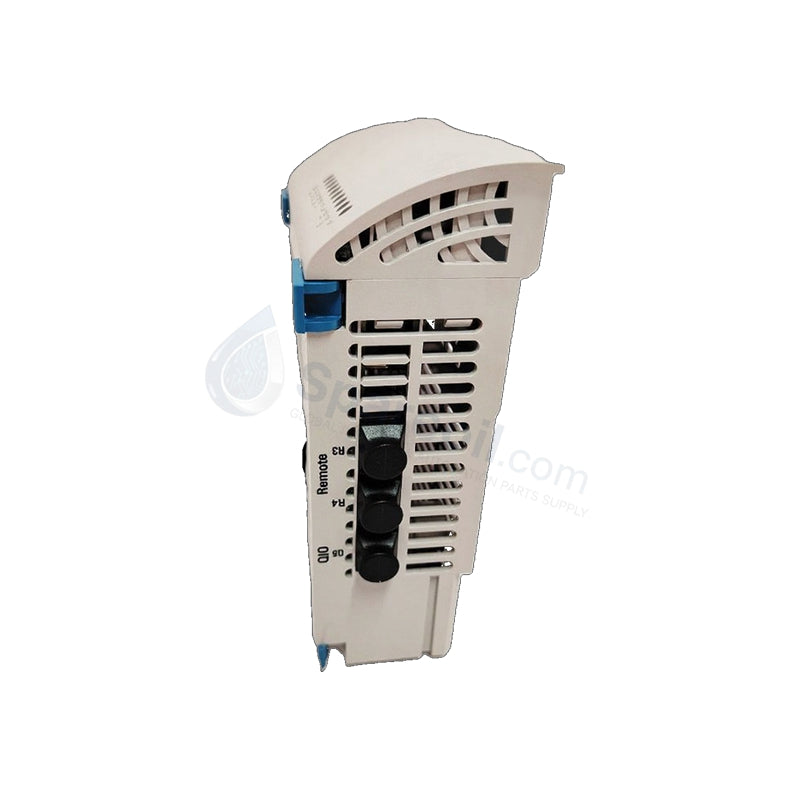

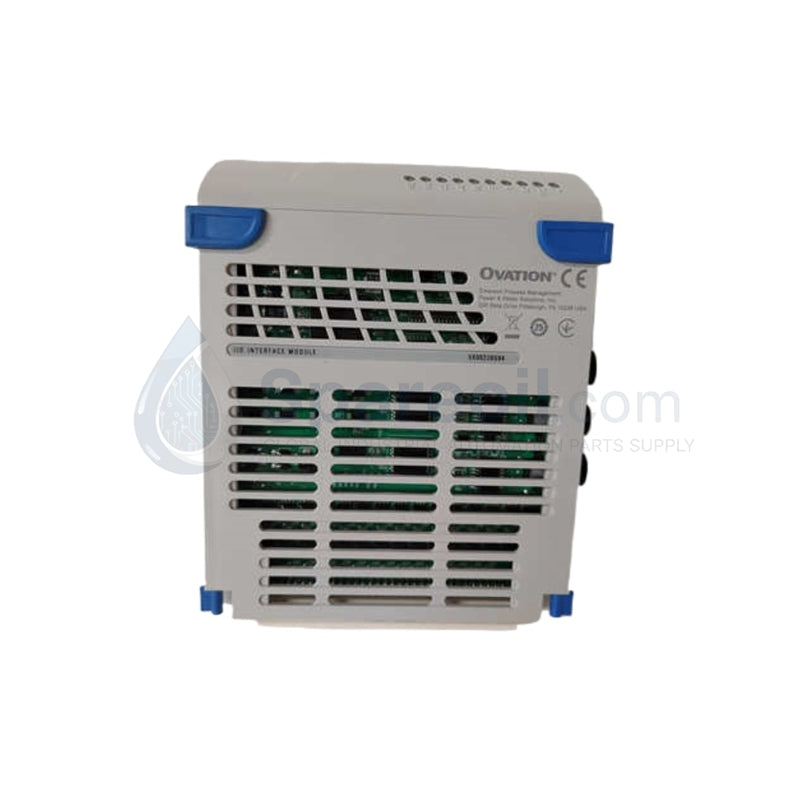

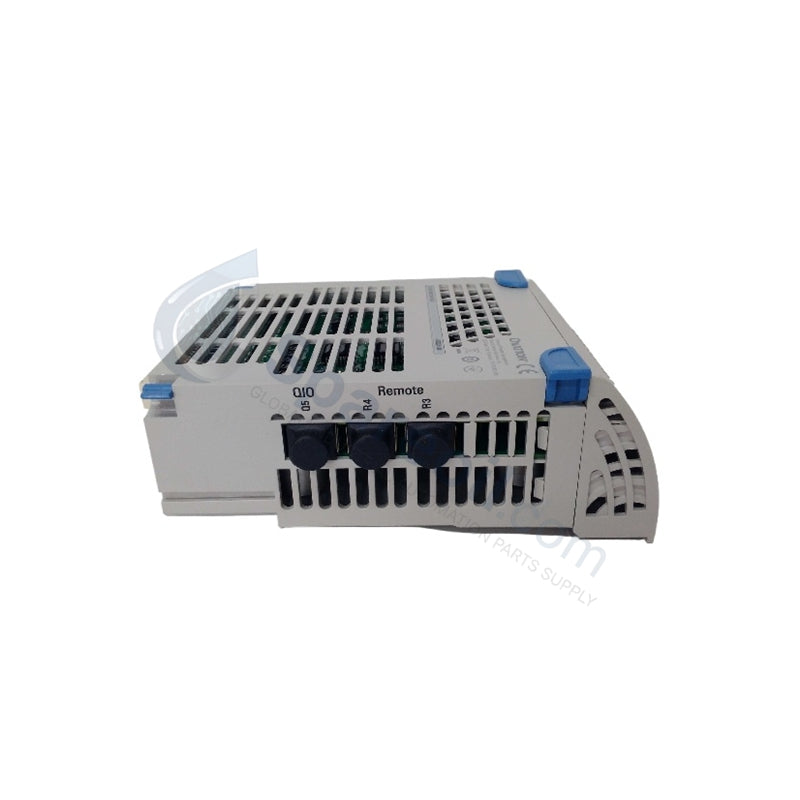

Emerson 5X00226G04 Ovation Series

The Emerson 5X00226G04 serves as the primary 5X00226G04 Analog Output Module utilized to execute precision control of actuators across Ovation Series platforms.

Hardware Specifications

Parameter Specification
Model 5X00226G04
Brand Emerson
Origin United States
Weight 0.36 kg
Dimensions 150 mm x 81 mm x 52 mm
Operating Temp 0 to +60 deg C
Power Consumption Rack powered via backplane
Output Channels 8 analog outputs (4-20 mA)
Resolution 16-bit (0.0015% full scale)
Accuracy +/-0.05% over 12 months
Response Time <5 ms (0-100% full scale)
Isolation 1000 VDC channel-to-channel, 2500 VDC channel-to-backplane

Process Control and DCS Instrumentation

The electrical architecture incorporates a 4-20 mA HART loop protocol enabling HART 7.0 pass-through communication for remote valve positioner calibration. Galvanic protection is achieved through 1000 VDC channel-to-channel isolation paired with 2500 VDC channel-to-backplane isolation to suppress transient signals. The 16-bit digital-to-analog converter drives field loops with an update response time of less than 5 ms, mitigating signal drift across critical modulation valves.

Frequently Asked Questions

Q: How is the hot-standby redundancy loop configured for this hardware?

A: Redundant operations require pairing the 5X00226G04 module with a 5X00227G04 base unit in a 1:1 hardware configuration. The Ovation backplane manages tracking variables to execute a bumpless transfer if a fault is detected on the active module.

Q: What are the continuous and peak current output thresholds for the channels?

A: Each channel delivers a continuous current output of 0-20 mA. The loop circuitry is capable of sustaining a peak current of 30 mA for a maximum duration of 10 seconds under high-demand actuator states.

Q: Does the module log and display internal loop faults or hardware failures?

A: Yes, the module features built-in diagnostics that continually scan channel integrity and internal component health, reporting faults directly to the controller while driving faceplate LED status indicators.

Field Installation Guidelines

  • Enclosure Thermal Maintenance: When installing modules in dense 1U slot clusters, provide an unhindered vertical exhaust path. Verify that convective airflow maintains the localized internal rack temperature below +60 deg C.
  • Shield Grounding Specifications: Terminate the analog cable outer shields at the designated single-point cabinet ground busbar. Do not ground shields at the field instrument side to prevent low-frequency ground loops.
  • Wiring Conduits and Separation: Run all 4-20 mA analog output conductors in dedicated, grounded metallic trays separate from high-voltage AC or inductive motor control circuits to block electromagnetic noise coupling.
