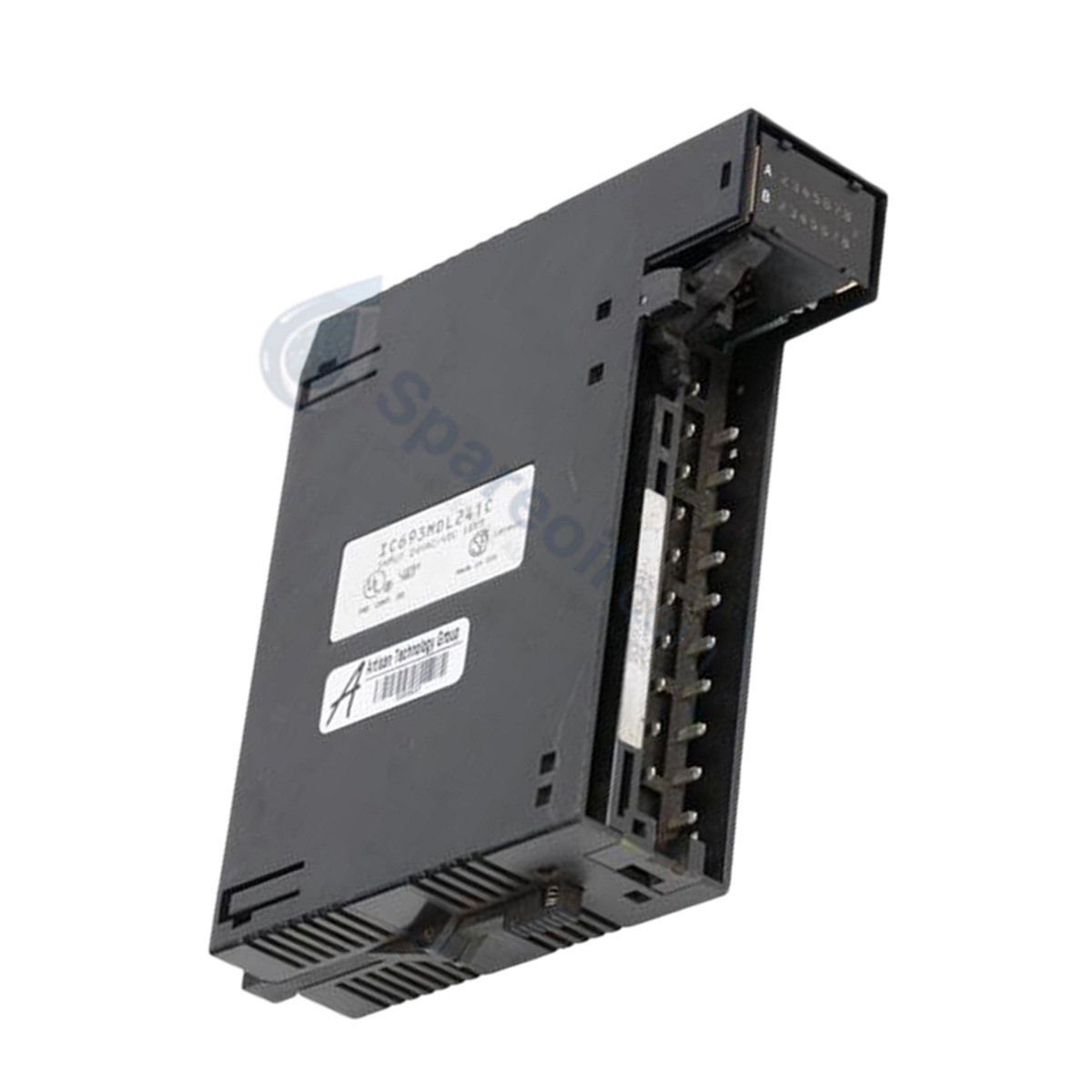

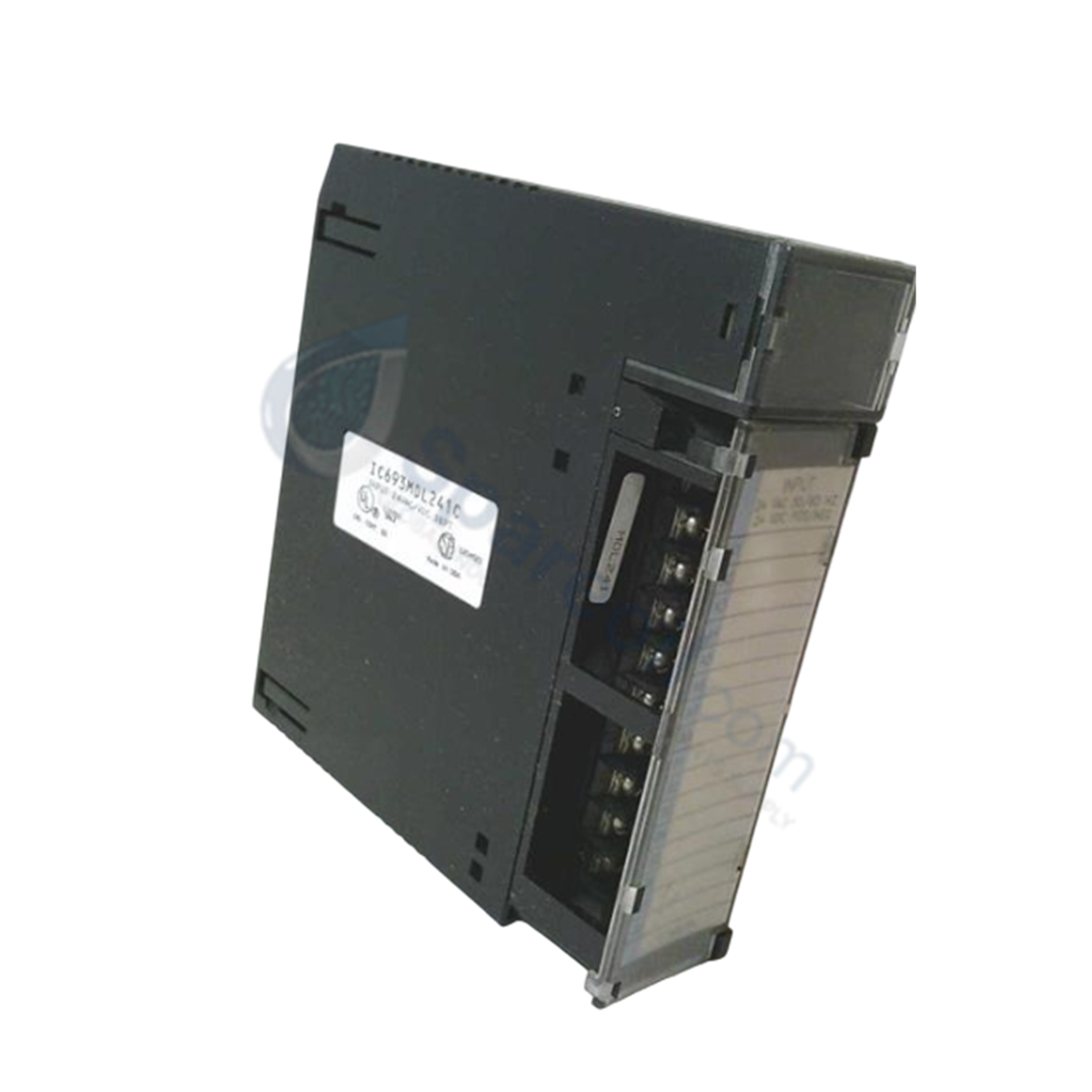

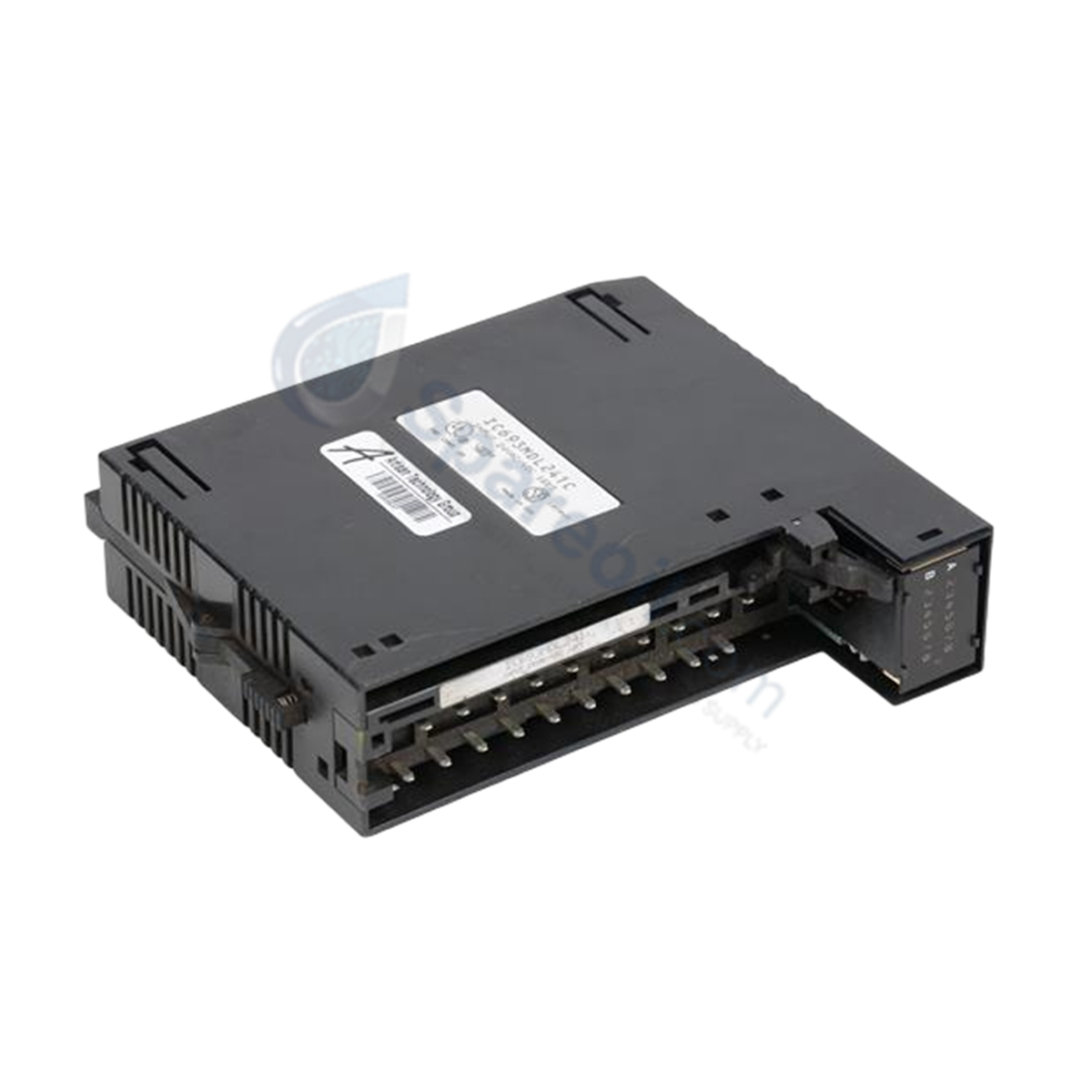

Configured for field contact status sensing and discrete signal acquisition in Series 90-30 platforms, the GE Fanuc IC693MDL241 (IC693MDL241 Discrete Input Module) provides direct physical/electrical execution.

Hardware Specifications

Parameter Specification
Model IC693MDL241
Brand GE Fanuc Emerson
Origin USA
Weight 0.69 lbs (0.31 kg)
Dimensions Single-slot Series 90-30 module width
Operating Temp 0 to 60 deg C
Power Consumption 80 mA at 5 VDC (all inputs active); 125 mA from isolated 24 VDC backplane bus or external user supply
Number of Channels 16 discrete input channels (single group of 16 inputs)
Nominal Input Voltage 24 VAC / 24 VDC
Input Voltage Range 0 to +30 VDC or 0 to +30 VAC (50/60 Hz)
Wiring Configuration Positive / Negative logic (sink / source)
On-State Voltage 11.5 to 30.0 VAC / VDC
Off-State Voltage 0 to 4 VAC / VDC
On-State Current 3.2 mA minimum
Off-State Current 1 mA maximum
Input Current 7 mA at rated voltage
Response Times On response: 12 ms maximum; Off response: 28 ms maximum
Galvanic Isolation 1500 V RMS (1500 VAC) between field side and logic side
Logic Reading %I memory table
LED Indicators 16 green status LEDs (2 rows of 8: A1-A8, B1-B8)

Backplane Bus Communication Velocity & I/O Density Scaling

The IC693MDL241 input module updates discrete channel data into the CPU %I logic memory map across the backplane bus within a 12 ms On-response and 28 ms Off-response delay. Optimized for backplane bus communication velocity and I/O density scaling, the 16-point single-group topology supports positive or negative logic in DC mode, as well as 50/60 Hz AC signals. Logic-side circuits draw 80 mA from the 5 VDC backplane bus when all channels are active, while field power consumes 125 mA from the isolated 24 VDC bus or a user-provided power supply. Galvanic isolation of 1500 V RMS protects the internal backplane logic from external field circuit spikes.

Frequently Asked Questions

Q: What power sources can be used to supply the input field circuits on the IC693MDL241?

A: Field circuits can be powered using an external 24 VAC/VDC user supply or the isolated 24 VDC output supplied directly by the baseplate power supply.

Q: What are the logic threshold limits for detecting On and Off channel states?

A: The module registers an On-state at 11.5 to 30.0 VAC/VDC (3.2 mA minimum) and an Off-state at 0 to 4 VAC/VDC (1 mA maximum off-state current).

Q: What are the backplane current draw requirements for this 16-point input module?

A: The module consumes 80 mA from the 5 VDC backplane bus when all 16 inputs are ON, plus 125 mA from the isolated 24 VDC backplane supply or external user source.

Field Installation Guidelines

  1. Remove primary power from the Series 90-30 baseplate and field power distribution loops before inserting or servicing the module.
  2. Align the module chassis with the target slot on a 5-slot or 10-slot Series 90-30 baseplate and push until the backplane connector engages fully.
  3. Tighten the top panel mounting screw to secure mechanical holding and establish solid chassis earth grounding.
  4. Route field contact wiring (limit switches, pushbuttons, proximity sensors) to the terminal block, ensuring AC or DC voltage levels stay within the 0 to 30 V range.
  5. Separate low-voltage input conductors from high-voltage AC lines to minimize noise coupling, grounding all cable shielding at a single frame terminal.
