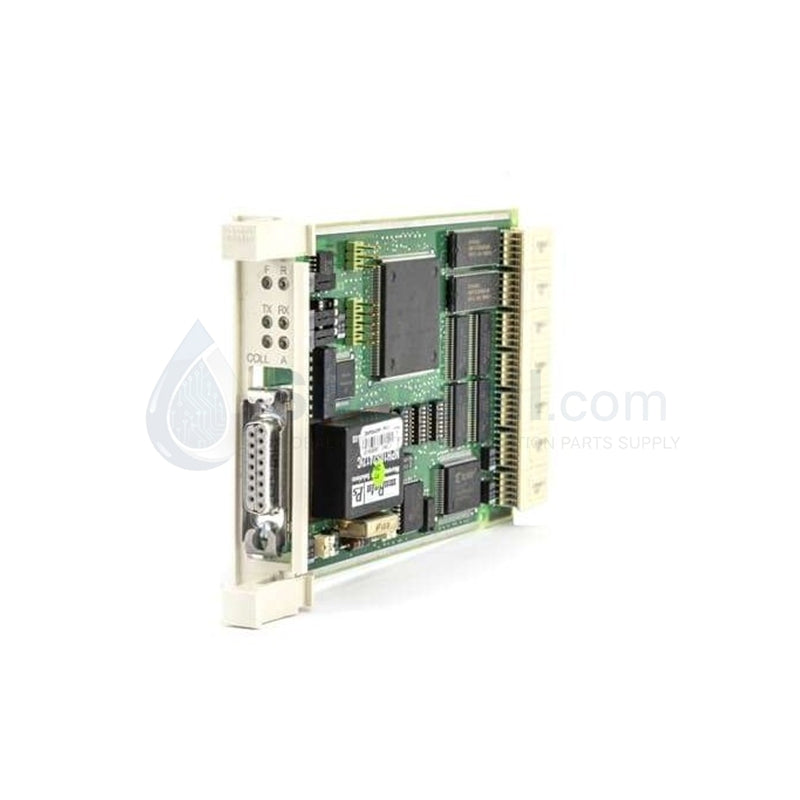

ABB CI547 3BNP004429R1 Slave Processor Communication Board

The ABB CI547 3BNP004429R1, also cataloged as the CI547 Communication Module, operates as a dedicated hardware component for industrial network signal processing within ABB PM150 Central Processor Systems. By offloading complex protocol stacks to its integrated onboard slave processor, the module independent handles network data exchange frames, preventing CPU cycles on the host controller from encountering computational resource depletion during high-density traffic bursts.

Hardware Specifications

Parameter	Specification
Model	CI547
Part Number	3BNP004429R1
Brand	ABB
Origin	Sweden
Weight	0.165 kg
Dimensions	257 mm x 30 mm x 125 mm
Operating Temp	0 to +55 deg C
Power Consumption	Derived from backplane power rail lines
Processor Architecture	Integrated Dedicated Slave Processor
Primary Compatibility	ABB PM150 Central Processor Systems
Exchange Number	EXC3BNP004429R1
Environmental Compliance	EU Directive 2011/65/EU (RoHS compliant)
WEEE Category	Category 5 (Small Equipment less than 50 cm)

Backplane Bus Communication Velocity Licences and I/O Density Scaling

The ABB CI547 implements specialized internal register logic designed to optimize bus interface transitions across the hardware assembly. The board relies on dedicated firmward logic that handles bus cycle transactions without demanding extra backplane bus communication velocity licences from the host controller rack.

This optimized pipeline permits efficient I/O density scaling profiles, allowing the module to map extensive variable matrices into the memory registers of the PM150 central processor. Communication transfers are fully deterministic, utilizing the integrated slave processor to control transport layers and filter network jitter while maintaining steady memory mapping states under peak packet loads.

Frequently Asked Questions

Q: How does the slave processor on the CI547 prevent processing delays on the host PM150 CPU? A: The onboard slave processor acts as an independent execution engine that absorbs network protocol routines, interface requests, and packet decoding tasks. The host PM150 CPU only interacts with pre-processed, structured data blocks in the shared memory space, preserving its bandwidth for deterministic control logic execution.

Q: Are there specific firmware flash compatibility rules when inserting the CI547 into an existing PM150 controller rack? A: Yes. The firmware revision loaded into the CI547 slave processor must align with the target operating system version of the PM150 central processor. Discrepancies in version mapping can cause initialization failures, preventing the board from establishing a steady state on the system bus.

Field Installation Guidelines

Remove all primary power sources feeding the host controller rack before attempting to insert or remove the communication board assembly.
Slide the module evenly into the designated slot guides, ensuring that the backplane pins achieve complete axial alignment to avoid mechanical bending.
Press the front panel firmly until the integrated locking tabs hook into the framework, creating a secure grounding bond.
Ground all network communication cable shields at a single point on the enclosure bulk ground rail using low-impedance grounding straps.
Route all communication link lines through distinct paths separated by at least 30 cm from high-voltage AC cables and motor power leads.
