Product Overview

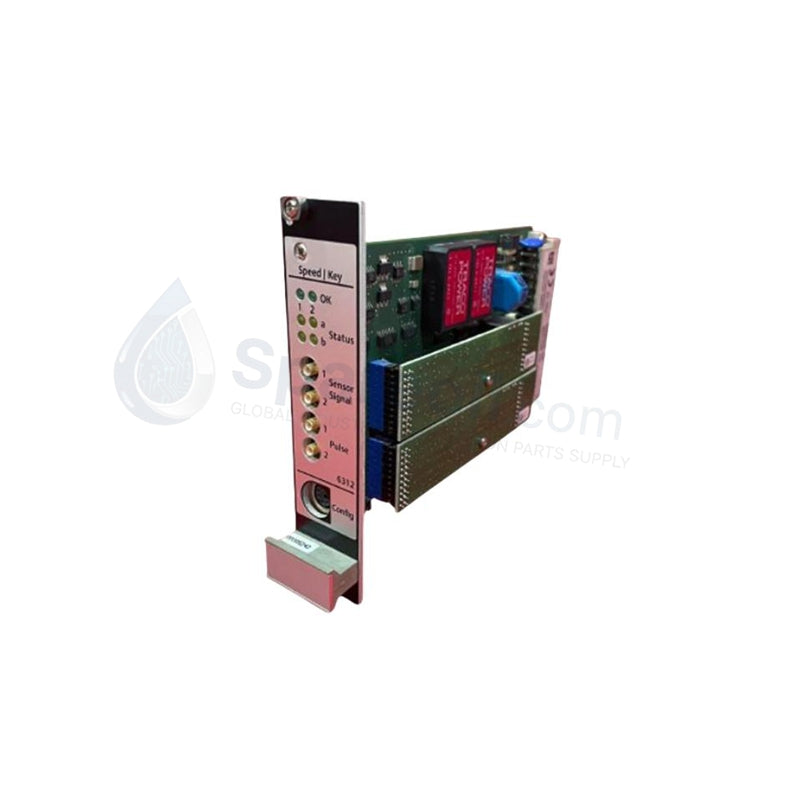

The Emerson EPRO A6312/06 operates as a high-precision, dual-channel speed and phase monitoring module designed for the AMS 6500 (CSI 6500) Machinery Health Monitor system rack. This 3U plug-in card functions as the master synchronization engine for the entire monitoring chassis, capturing raw high-frequency pulses from eddy current proximity probes, magnetic pickups, or Hall-effect sensors. Turbomachinery maintenance teams rely on this module to compute precise rotational speeds (RPM), detect zero-speed conditions, and establish phase reference angles (Keyphasor) to execute advanced synchronous vibration analysis and order tracking on critical industrial shafts.

Technical Specifications

• Manufacturer: Emerson (CSI / EPRO)

• Model Number: A6312/06

• Hardware Revision Level: Revision 12

• System Chassis Series: AMS 6500 / CSI 6500

• Sensor Input Density: 2 Independent, Configurable Channels (Speed / Phase Reference)

• Signal Transceiver Compatibility: Eddy current proximity sensors, Hall-effect pulses, magnetic pickups

• Native Operating Modes: Speed tracking (RPM), Zero Speed monitoring, Phase angle reference, Frequency calculations (Hz)

• Core Industry Standard Compliance: API 670 (Machinery Protection Systems)

• Buffered Signal Interfaces: Front-panel SMB coaxial ports and rear terminal connections for raw pulses

• Analog Proportional Retransmission: Programmable 0–20 mA, 4–20 mA current loops, or 0–10 V DC voltage outputs

• Discrete Data Interface: TTL-compatible pulse outputs for connection to external analyzer platforms

• Continuous Diagnostic Monitoring: Active sensor power verification, field cable open/short tracking, internal board temperature logs

• Mechanical Form Factor Dimensions: Standard 3U European card profile (Plug-in architecture)

• Live Service Capabilities: Supports active hot-swap module replacement during rack runtime

• Permissible Operating Temperatures: 0 to +55 degrees Celsius (32 to 131 degrees Fahrenheit)

• Component Production Condition: 100% Brand New and Original in Factory Packing

Engineering Advantages

API 670 Compliant Architecture Delivers Real-Time Machinery Protection

The A6312/06 processes transient signal inputs over a dedicated dual-channel path to satisfy strict API 670 machinery protection execution guidelines. The module computes speed steps independently of the main rack processor, triggering proportional analog and TTL outputs within millisecond deadlines. This autonomous processing speed ensures that oversensing circuitry activates emergency trip interlocks instantly when a multi-ton steam turbine crosses critical design velocity parameters, saving rotating machinery from catastrophic blade destruction.

Dual SMB Coaxial Outputs Simplify Diagnostic Data Extraction

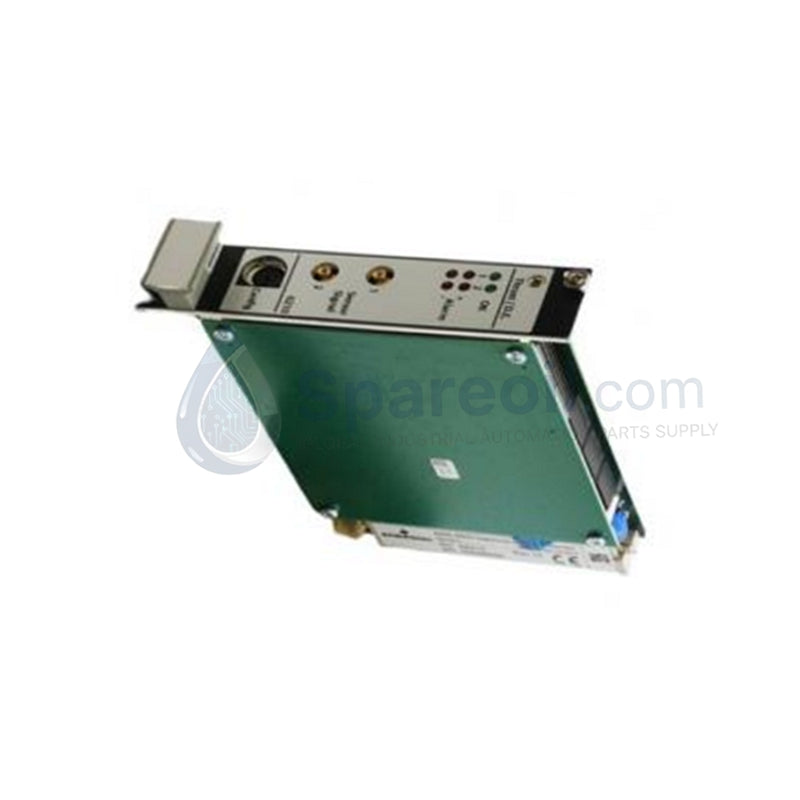

The front face of the Revision 12 card features dedicated SMB coaxial ports that present buffered, unaltered raw pulse waveforms to external technicians. Vibration specialists clip portable oscilloscope clamps or dynamic signal analyzers directly onto these front ports without unseating field wires, removing terminal jumpers, or risking short-circuit trips. This accessible test architecture allows crews to evaluate physical probe gapping and trigger conditions while the target turbine runs live production streams.

Integrated Sensor Line Supervision Restricts False System Trips

An advanced diagnostic engine tracks the electrical status of the field cable networks and sensor power rails continuously. The card identifies broken wires, shorted probe loops, and sensor power deterioration immediately, isolating field problems from physical machine faults. By declaring a diagnostic sensor fault instead of mimicking an overspeed state, the module prevents expensive false process trips while giving instrument techs exact maintenance guidance to shorten troubleshooting intervals.

FAQs

• Can the A6312/06 process inputs from two different sensor families at the same time? Yes. The module allows you to configure its two input channels independently via the system utility software. You can connect a negative-voltage eddy current proximity probe to Channel 1 to serve as the master phase reference (Keyphasor) while linking an active inductive magnetic pickup to Channel 2 to monitor continuous machine shaft RPM, maximizing rack utility.

• How does the module handle order tracking during variable speed machine startups? The A6312/06 translates the incoming shaft pulse into a high-accuracy phase reference vector that matches exact shaft position angles. It broadcasts this synchronization clock along the AMS 6500 backplane bus, allowing adjacent vibration cards to sample structural casing data at precise fractions of a rotation. This synchronization enables engineers to isolate specific vibration harmonics (1X, 2X, etc.) as the machine slews from standstill to functional runtime.

• Does installing a replacement A6312/06 require a complete power-down of the AMS 6500 rack? No. The card features complete hot-swap integration compatibility within the AMS 6500 chassis layout. Staggered connector tracking grounds the card frame and synchronizes the logic interface before raw panel lines mate with the active backplane pins. This design allows technicians to hot-swap a damaged speed card without dropping power to adjacent, live machine protection loops.
