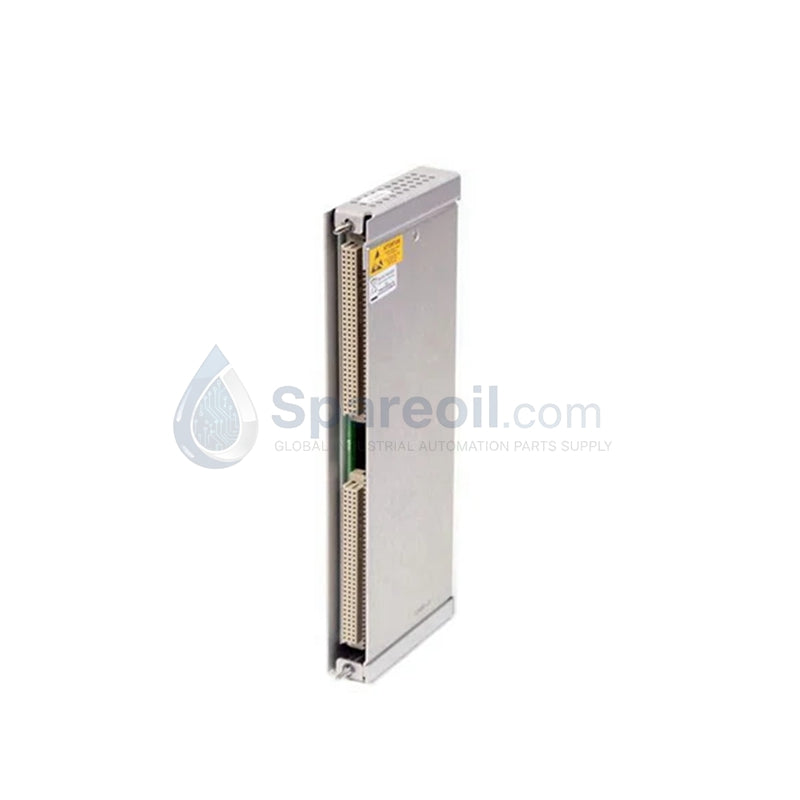

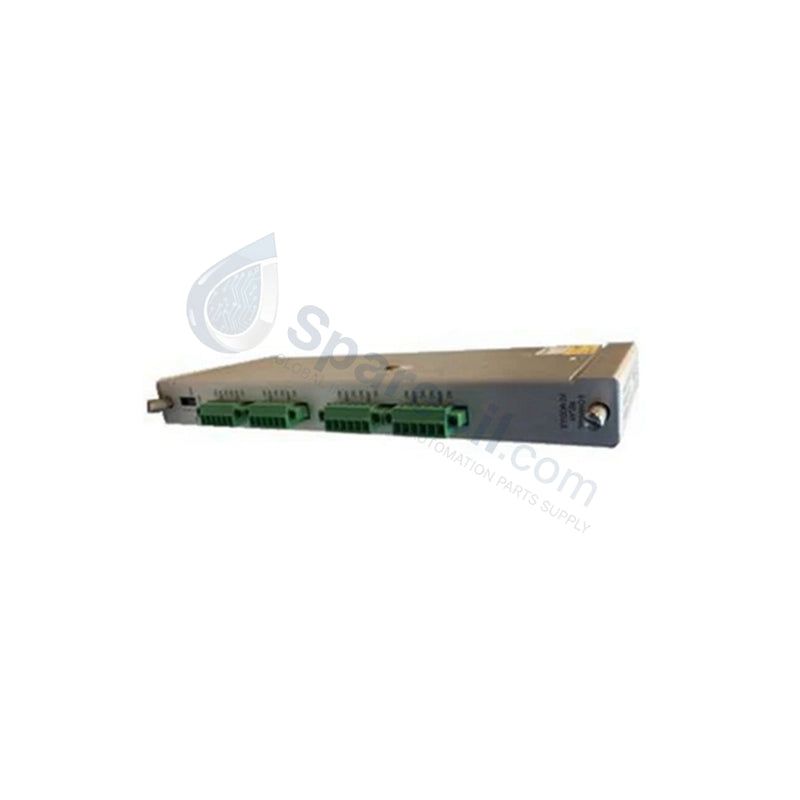

Bently Nevada 3500/42M 140482-01 External Termination Unit

Bently Nevada 3500/42M 140482-01 External Termination Unit

Availability: 10 left in stock

Product Overview The Bently Nevada 140482-01 functions as a high-performance Prox/Velom I/O Module designed for the 3500/42M Machinery Protection System. This 100% Brand New original...

SKU: 140482-01

Manufacturer: ABB
Product No.: 140482-01
Product Type: External Termination
Product Origin: Switzerland
Payment:T/T, Western Union
Weight: 460g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The Bently Nevada 140482-01 functions as a high-performance Prox/Velom I/O Module designed for the 3500/42M Machinery Protection System. This 100% Brand New original component provides the essential physical interface between field sensors and the monitor module. It supports External Termination (ET) configurations, allowing engineers to route sensor wiring to a dedicated termination block outside the main rack. This architecture streamlines high-density wiring and enhances system serviceability in critical turbine and compressor monitoring applications.

Technical Specifications

Parameter	Specification Details
Supported Sensors	Proximitor® Probes, Velomitor® Sensors, Accelerometers
I/O Type	External Termination (ET)
Input Signal Range	4–20 mA Standard / Dynamic Vibration Signals
Communication	Modbus RTU Support (via backplane integration)
Operating Voltage	12 to 24.9 VDC
Operating Temperature	-40°C to +70°C (-40°F to +158°F)
Protection Rating	IP65 (When housed in appropriate enclosure)
Dimensions	241.3 mm x 24.4 mm x 163.1 mm
Compliance	API 670 Machinery Protection standard
Weight	0.46 kg (Net) / 2.0 kg (Shipping)

Engineering Advantages

Optimized Wiring Management: The 140482-01 utilizes external terminations to decouple field wiring from the 3500 rack. This prevents mechanical stress on the backplane connectors and allows technicians to perform wiring maintenance without disturbing the monitor modules.
Broad Sensor Compatibility: This module eliminates the need for multiple I/O variants by accepting inputs from proximity probes, velocity sensors, and accelerometers. Internal jumpers allow for rapid reconfiguration based on the specific transducer type required for each channel.
Extreme Environmental Resilience: With an operational range from -40°C to +70°C, this module thrives in unconditioned industrial environments. The robust circuitry resists high-frequency EMI/RFI, ensuring that vibration data remains accurate near large electric motors and power cables.
Fail-Safe Signal Conditioning: The module provides precise signal buffering to the rack backplane. This ensures that the 3500/42M monitor receives a clean, high-fidelity representation of the shaft dynamics, which is vital for calculating accurate peak-to-peak vibration and thrust position.

FAQs

Does the 140482-01 require a specific I/O cable?

Yes. Because this is an External Termination module, you must use a specialized Bently Nevada signal cable to connect the 140482-01 to the external termination block where the field sensors land.
Can I use this module for SIL-rated safety loops?

The 140482-01 is a standard component for the 3500/42M system. When integrated into a SIL-certified 3500 rack configuration, it supports the functional safety requirements of IEC 61508.
What is the primary difference between internal and external terminations?

Internal terminations require you to wire sensors directly to the back of the 3500 rack. The 1450482-01 (External) uses a multi-conductor cable to move those connection points to a separate terminal strip, which is ideal for racks with limited rear access.
