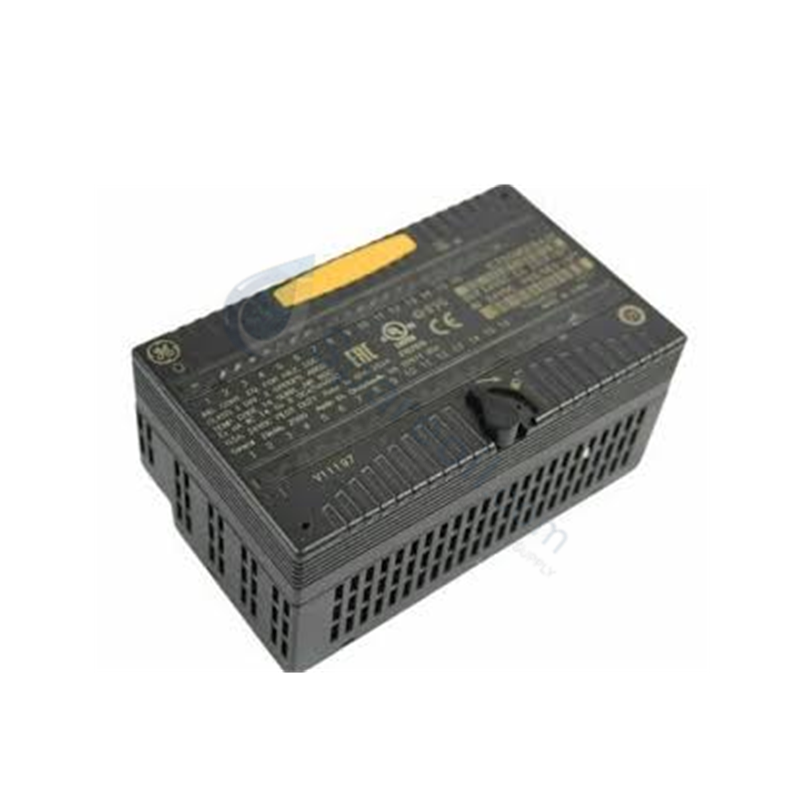

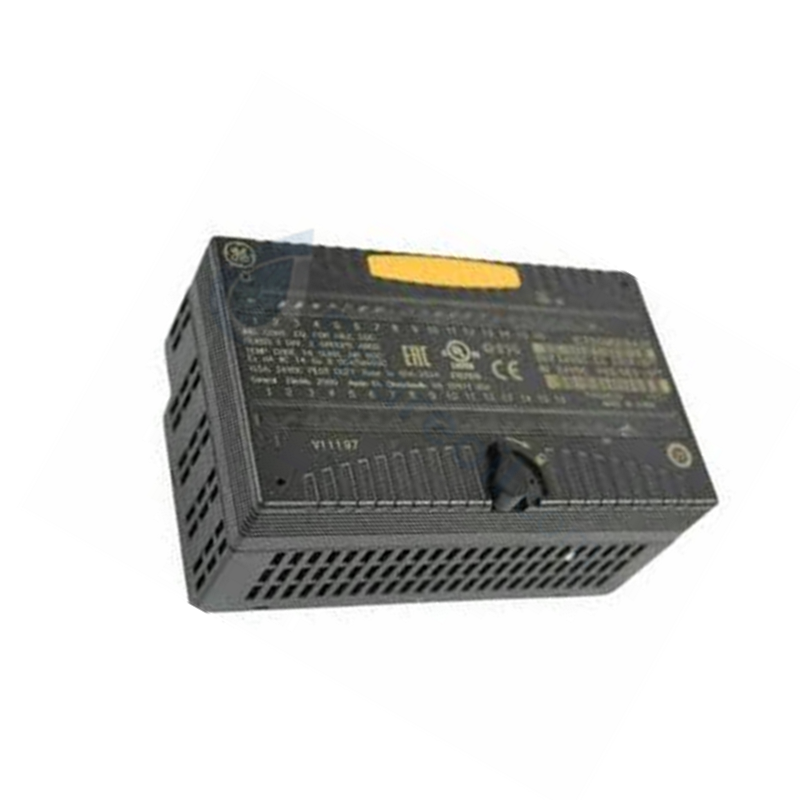

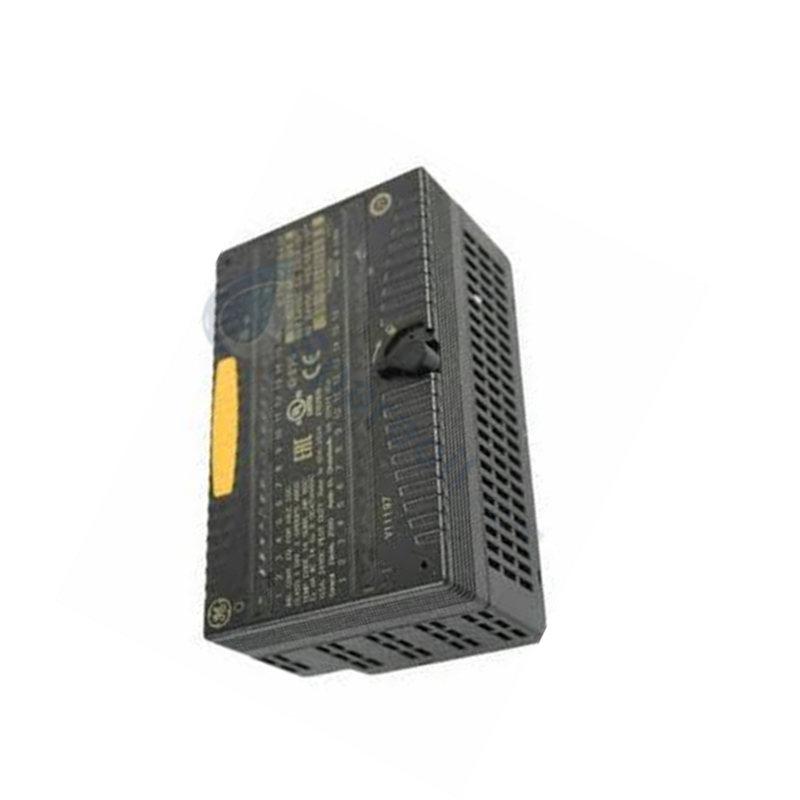

Configured for discrete signal processing and output actuation in VersaMax PLC architectures, the GE Fanuc IC200MDD842 (IC200MDD842 Discrete Mixed I/O Module) provides direct physical/electrical execution. The module manages 32 total field points organized into 16 discrete inputs and 16 discrete outputs, processing positive and negative field logic while enforcing overcurrent protection across load paths.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IC200MDD842 |
| Brand | GE Fanuc |
| Origin | USA / Standard Industrial Operations |
| Product Type | Discrete Mixed I/O Modules |
| Total I/O Points | 32 (16 Inputs, 16 Outputs) |
| Input Configuration | 2 groups of 8 points (Positive / Negative logic) |
| Output Configuration | 1 group of 16 points (Electronic Short Circuit Protection) |
| Nominal Operating Voltage | 24 VDC |
| Load Current | 0.5 A per point at 30 VDC |
| Response Time | 0.5 ms (Input and Output channels) |
| Hardware Upgrade Requirement | Revision IC200MDD842B required for negative logic operation |
| Channel Isolation | Non-isolated channels |
| Internal Protection | Electronic overcurrent, free-wheeling diodes, short circuit protection |
| Status Indication | Per-point LED indicators (Green/Amber states) |
| Dimensions | Standard VersaMax module footprint |
| Weight | 0.14 kg (0.31 lbs) |
| Operating Temp | 0 to +60 deg C |
| Power Consumption | Standard 24 VDC backplane bus draw |
Backplane Bus Communication Velocity and Deterministic Networks
The module coordinates real-time state updates across the backplane bus to synchronize I/O scanning routines with controller execution frames. High-density I/O point grouping maintains backplane bus communication velocity across EtherNet/IP and Profinet deterministic networks without introducing scan latencies. Dedicated hardware registers verify firmware flash compatibility during controller startup to prevent communication mismatches across mixed I/O racks.
Frequently Asked Questions
Q: What hardware revision is required to enable negative logic operation on the IC200MDD842?
A: Negative logic input processing requires the IC200MDD842B hardware revision upgrade.
Q: Are individual channels on the IC200MDD842 galavanically isolated from one another?
A: No, channel-to-channel isolation is not supported on this module. Common power and return reference buses are shared within point groups.
Q: How does the module react to output overload and short-circuit conditions?
A: Integrated electronic overcurrent protection and free-wheeling diodes trip the affected channel and report diagnostic fault messages to the controller while illumination state changes on the local status LEDs.
Field Installation Guidelines
- Field Wiring Power Isolation: Turn off external 24 VDC field supply voltages before inserting or removing terminal blocks to prevent arc discharge across input/output terminals.
- Inductive Load Shielding: Ensure freewheeling diode protection circuits remain functional when driving inductive DC loads to clamp voltage spikes across switching elements.
- Terminal Grouping and Common Wiring: Wire positive or negative logic field inputs to the correct common return group terminal, ensuring voltage polarity matches the specific group configuration.
- Conductor Separation: Separate 24 VDC discrete wiring routes from AC power cables and high-frequency drive output leads to maintain signal integrity and prevent induced field noise.
