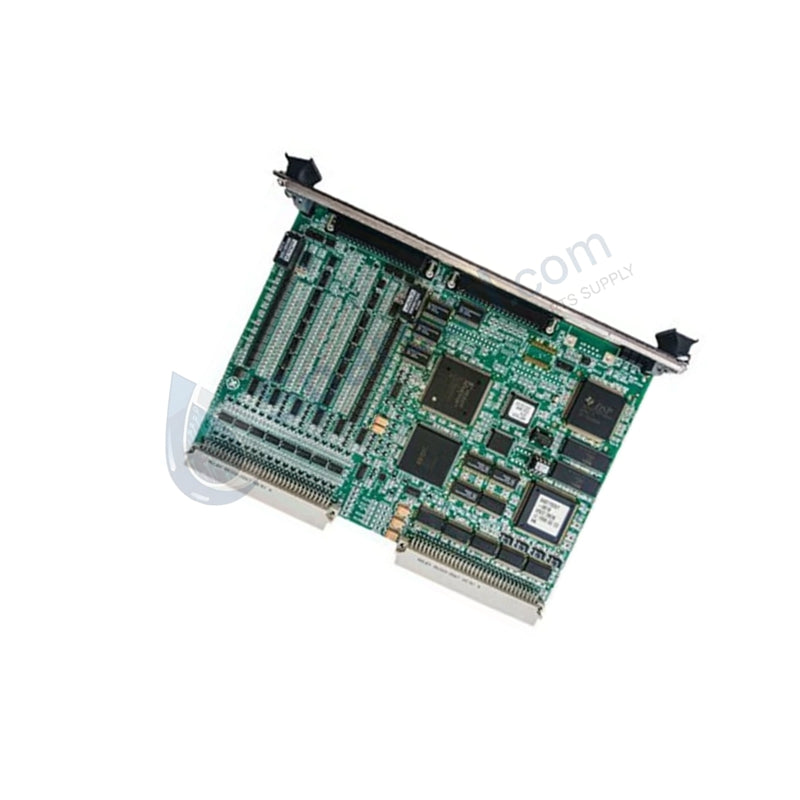

IS200VVIBH1CAB GE VME Vibration Card

IS200VVIBH1CAB GE VME Vibration Card | New & Original Stock

Availability: 10 left in stock

GE IS200VVIBH1CAB Mark VI VME Vibration Monitor Interface Board The GE IS200VVIBH1CAB, also cataloged as the IS200VVIBH1C VME Vibration Input...

SKU: IS200VVIBH1CAB

Manufacturer: GE Fanuc
Product No.: IS200VVIBH1CAB
Product Type: Vibration Monitor Boards
Product Origin: USA
Payment:T/T, Western Union
Weight: 850g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

GE IS200VVIBH1CAB Mark VI VME Vibration Monitor Interface Board

The GE IS200VVIBH1CAB, also cataloged as the IS200VVIBH1C VME Vibration Input Interface, serves as the primary IS200VVIBH1C VME Vibration Monitor Board utilized to execute high-density analog-to-digital conversion across Mark VI Speedtronic Control platforms.

Hardware Specifications

Parameter	Specification
Model	IS200VVIBH1CAB (Base: IS200VVIBH1C)
Brand	General Electric (GE)
Origin	USA
Board Type	VME Vibration Input Interface
Signal Channels	Up to 26 Input Channels
Bus Communication	VMEbus Architecture
Compatible Probes	Proximity, Velocity, Accelerometers, Seismic
Operating Temp	-20 to +65 deg C
Storage Temp	-40 to +85 deg C
Dimensions	Standard VME Full-Size (330 mm x 178 mm)
Weight	0.85 kg typical
Power Consumption	18 W maximum

Backplane Bus Communication Velocity and I/O Density Scaling

The IS200VVIBH1CAB functions within the Mark VI rack environment to manage I/O density scaling by routing up to 26 concurrent vibration measurement streams down to a single VME slot footprint. The processing matrix ingests high-frequency dynamic signals from physical non-contacting sensors, driving integrated high-speed analog-to-digital converters to populate the VMEbus architecture registers. Parallel bus interface circuits maintain the necessary backplane bus communication velocity to stream synchronized wave arrays and scalar values to the central turbine controller within deterministic millisecond update intervals. Firmware flash compatibility rules require system alignment with specific Speedtronic core configurations to ensure uniform bus addressing boundaries.

Frequently Asked Questions

Q: Can the IS200VVIBH1CAB interface card be safely hot-swapped while the Mark VI VME chassis is active?

A: No. The VME backplane pins on the IS200VVIBH1CAB do not utilize specialized pre-charging logic tracks. Removing or inserting this board while the rack remains energized can induce transient electrical breakdown, creating memory parity faults or hardware damage across the shared VMEbus.

Q: How does the hardware architecture separate different transducer signal classifications across the 26 channels?

A: The input channels feature software-configurable analog filtering networks. Terminal block connections route individual field signals through variable amplification and attenuation stages configured for proximity probes, velocity sensors, or accelerometers.

Q: What onboard diagnostic indicators assist field personnel during an I/O communication fault?

A: The front panel incorporates specialized LED indicators that reflect board status, VME active communication cycles, and sensor open/short line faults, linking localized hardware problems straight to the Mark VI system diagnostic logs.

Field Installation Guidelines

Chassis Guides and Connector Seat Protection: Align the full-size VME card edge strictly with the upper and lower slot channels of the Mark VI rack. Firmly push the board inward until the dual injector/ejector handles seat the high-density pin matrix fully into the backplane receptacles.
Low-Impedance Front Panel Grounding: Tighten the upper and lower panel retaining screws to ensure proper metal-to-metal continuity between the front plate assembly and the main enclosure framework to ground radio-frequency currents.
Dynamic Signal Field Wiring Separation: Route all sensor coaxial and shielded twisted-pair signal cables through dedicated low-voltage cable paths. Maintain physical separation from three-phase AC motor leads and high-current relay conductors to suppress inductive field noise.
Shield Continuity Management: Terminate transducer outer cable shields only at the specified terminal board grounding strip. Do not ground the cable shield at both ends to ensure ground loops cannot introduce voltage deviations into the dynamic vibration channels.
