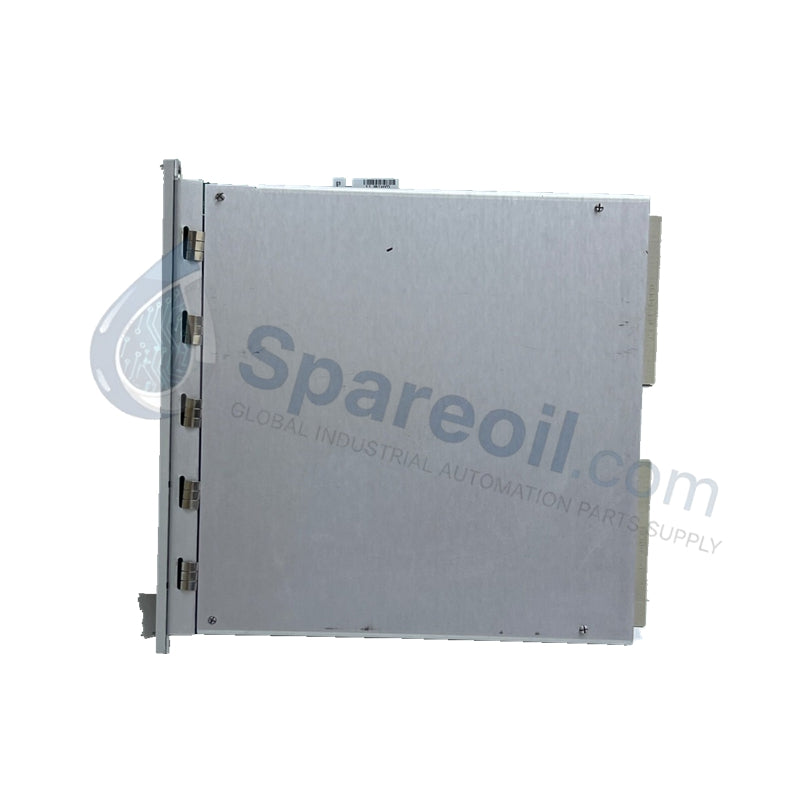

Isolated 4-20mA Input Module | 3500/62-01-00 | Bently Nevada

Isolated 4-20mA Input Module | 3500/62-01-00 | Bently Nevada

Availability: 10 left in stock

Product Overview The Bently Nevada 3500/62-01-00 functions as a high-precision Process Variable Monitor (PVM) within the 3500 Machinery Protection System. This Brand New module integrates...

SKU: 3500/62-01-00

Manufacturer: ABB
Product No.: 3500/62-01-00
Product Type: Process Variable Monitors
Product Origin: Switzerland
Payment:T/T, Western Union
Weight: 820g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The Bently Nevada 3500/62-01-00 functions as a high-precision Process Variable Monitor (PVM) within the 3500 Machinery Protection System. This Brand New module integrates standard process measurements—such as pressure, temperature, flow, and level—directly into the machinery protection rack. By consolidating these variables alongside vibration and speed data, the 3500/62 provides a holistic view of machine health, ensuring that process-induced stress does not compromise rotating asset integrity.

Part Number Breakdown

The 3500/62-01-00 configuration specifies the hardware interface and safety certification levels:

3500/62: Process Variable Monitor Base Module.
01: I/O Module Type – Equipped with Internal Terminations; supports -10 to +10 Vdc or 4-20mA inputs.
00: Agency Approval Option – Standard non-hazardous area configuration.

Technical Specifications

Parameter	Specification Details
Input Channels	4 Independent, Isolated Channels
Input Signal Types	4 to 20 mA, 1 to 5 Vdc, -10 to +10 Vdc
A/D Conversion	16-bit Resolution
Accuracy	±0.1% of Full-Scale Range
Sampling Rate	1 Sample/Second per Channel
Input Impedance	10 MΩ (Voltage), 250 Ω (Current)
Alarm Setpoints	2 levels per channel (Alert and Danger)
Operating Temperature	-30°C to +65°C (-22°F to +149°F)
Dimensions	24 cm x 11 cm x 2.5 cm
Weight	0.82 kg (Net Module)

Engineering Advantages

Isolated Signal Integrity: Each of the four channels features full galvanic isolation. This architecture prevents ground loops and eliminates cross-channel interference, even when transmitters share a common power source in complex plant environments.
Simplified Internal Termination: The 01 I/O module eliminates the need for external terminal blocks. Field wiring from transmitters connects directly to the rear of the rack, reducing cabinet complexity and decreasing points of failure in vibration-prone turbine halls.
Synchronized Data Analysis: The 3500/62-01-00 digitizes process variables and transmits them across the backplane. This allows the Communication Gateway (3500/92) to provide a single time-stamped data stream to the DCS/SCADA, facilitating rapid root-cause analysis during machine trips.
Programmable Threshold Flexibility: Engineers configure each channel independently via the 3500 Rack Configuration Software. The module supports time delays for alarms to prevent nuisance trips caused by transient process surges.

FAQs

Can the 3500/62 monitor RTD or Thermocouple signals directly?

No. The 3500/62-01-00 accepts 4-20mA or Vdc signals. You must use a temperature transmitter to convert RTD/TC signals to 4-20mA before connecting them to this monitor.
What happens if a channel signal goes "Out of Range"?

The module detects under-range and over-range conditions. It immediately triggers a "Not OK" status for that specific channel, preventing false alarms while alerting maintenance personnel to a potential sensor or wiring fault.
Does this module support redundant I/O?

The 3500/62 typically utilizes a single I/O module. For critical safety loops requiring hardware redundancy, engineers often install two separate 3500/62 monitors in the same rack.
