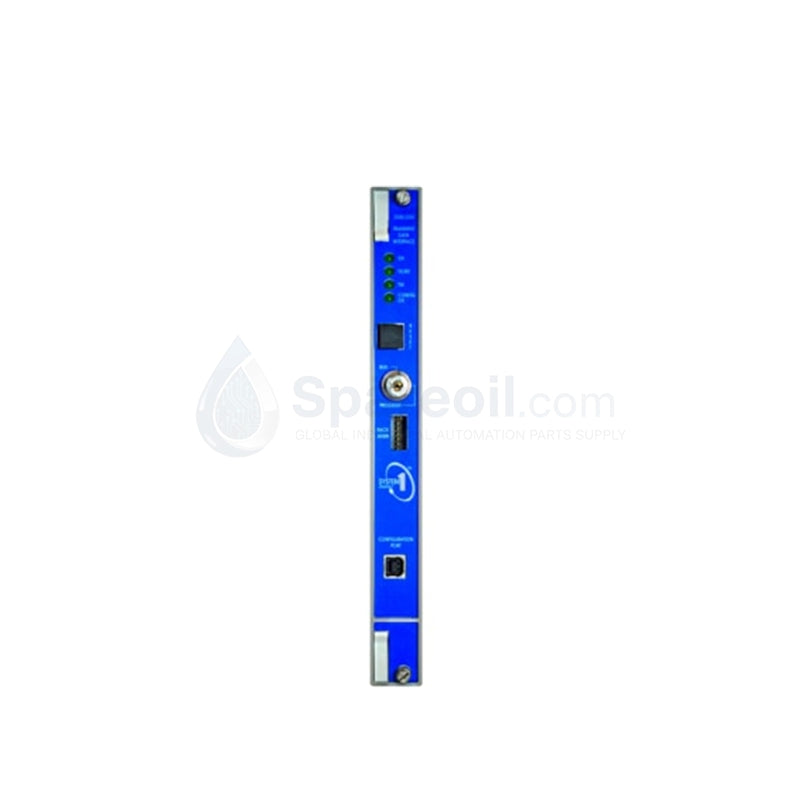

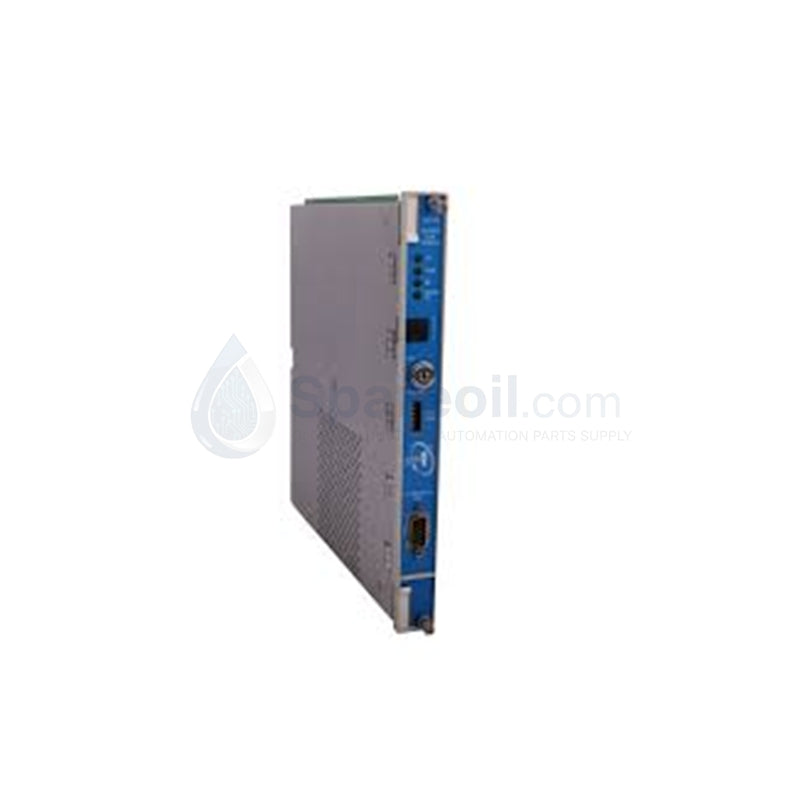

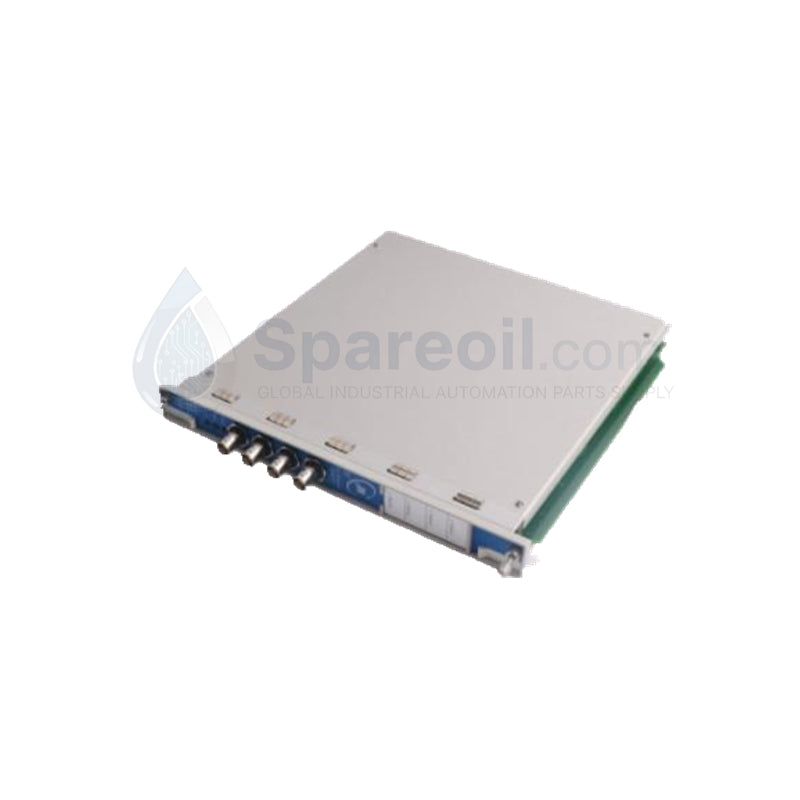

Original Bently Nevada 288055-01 Module with USB Cable

Original Bently Nevada 288055-01 Module with USB Cable

Availability: 10 left in stock

Product Overview The Bently Nevada 288055-01 functions as the high-speed communication backbone of the 3500 Machinery Protection System. This 100% Brand New Standard Transient Data...

SKU: 288055-01

Manufacturer: ABB
Product No.: 288055-01
Product Type: Transient Data Interface
Product Origin: Switzerland
Payment:T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The Bently Nevada 288055-01 functions as the high-speed communication backbone of the 3500 Machinery Protection System. This 100% Brand New Standard Transient Data Interface (TDI) I/O Module bridges the gap between the 3500 rack backplane and external diagnostic software. It facilitates the collection of both static (steady-state) and dynamic (transient) data, such as waveforms and spectral plots. By providing a dedicated USB interface, the 288055-01 allows engineers to perform high-resolution machinery diagnostics during turbine startups, coast-downs, and steady-state operations, ensuring critical rotating assets remain within safe vibration limits.

Technical Specifications

Parameter	Specification Details
Module Type	Standard Transient Data Interface (TDI) I/O
Interface Port	USB (Cable included for local connection)
Supported Sensors	Proximitor® Probes (5mm, 8mm, 11mm), Velocity, Accelerometers
Data Acquisition	Static and Dynamic (Transient) Data Capture
Input Signal Range	-24 VDC to +10 VDC
Operating Temperature	-30°C to +65°C (-22°F to +149°F)
Dimensions	228 mm x 50 mm x 289 mm
Shipping Weight	5.0 kg (Includes protective packaging and USB cable)
Compliance	API 670 Machinery Protection standard
Country of Origin	USA

Engineering Advantages

High-Fidelity Transient Capture: The 288055-01 captures high-frequency vibration data during critical machine state changes. It provides the high-resolution waveforms necessary for Bode, Polar, and Cascade plots, which are essential for identifying rotor resonance and mechanical instability.
Seamless Local Diagnostics: The integrated USB port enables immediate, "plug-and-play" local access for field engineers. By connecting a laptop directly to the 288055-01 via the included USB cable, maintenance teams can diagnose machinery health without reconfiguring the plant-wide network.
Proximitor Signal Optimization: This module performs advanced signal conditioning for 5mm, 8mm, and 11mm proximity probes. It ensures that the 3500/42M vibration monitors receive zero-noise, high-accuracy displacement data for precise shaft position tracking.
Industrial-Grade Data Integrity: Built to survive the electromagnetic noise of power plant turbine halls, the 288055-01 maintains high data throughput even under heavy RFI/EMI conditions. Its wide operating temperature range ensures consistent performance in unconditioned field cabinets.

FAQs

Does the 288055-01 require a specialized USB cable?

The module comes with a standard industrial-grade USB cable compatible with its front-panel diagnostic port. For best results and shielding, use only Bently Nevada-approved cables to maintain signal integrity during high-speed data transfers.
How does this module differ from a standard Communication Gateway?

Unlike standard gateways that primarily transfer static status data (e.g., Alert/Danger bits), the 288055-01 TDI focuses on "Dynamic" data. It streams full vibration waveforms to System 1† software for advanced spectral analysis.
Is the 288055-01 hot-swappable?

Yes, the 3500/22M system architecture supports the replacement of the I/O module while the rack is powered. However, we recommend following standard plant safety procedures to ensure no loss of transient data during the exchange.
