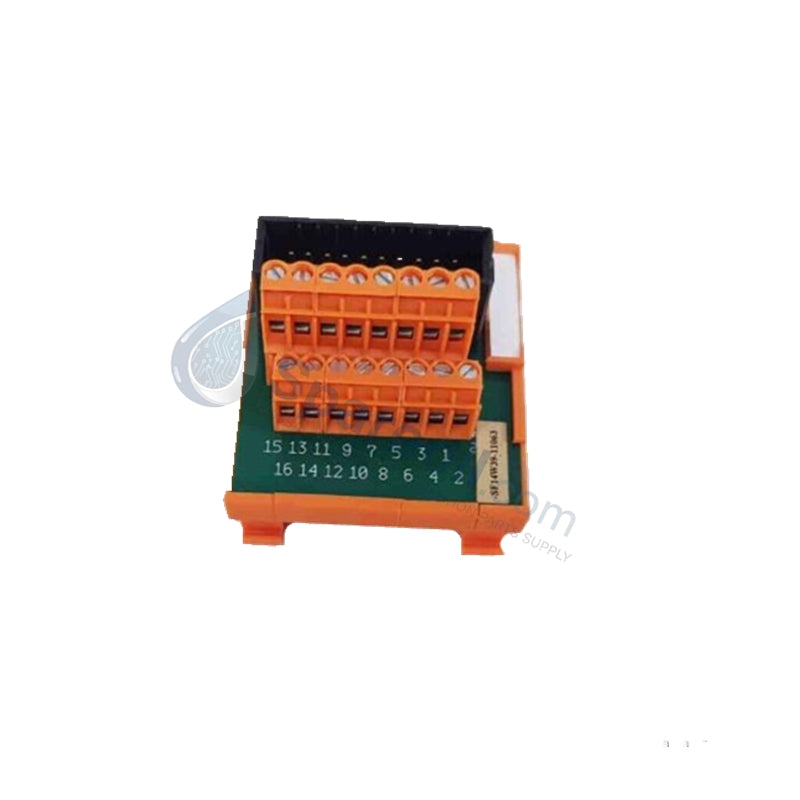

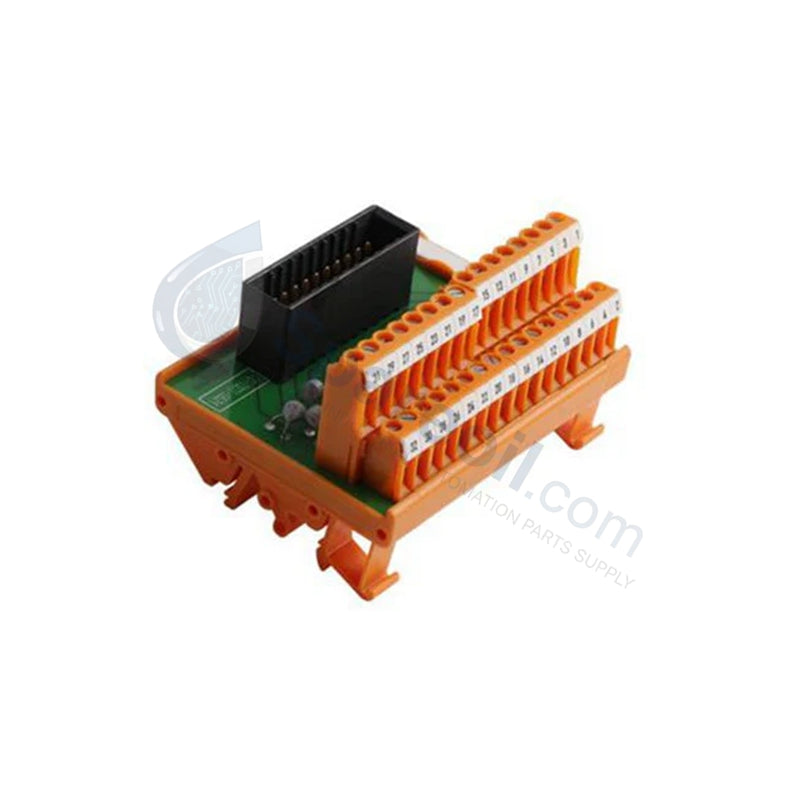

24VDC 2A Digital Output Module | Honeywell FC-TSDO-0824C

Availability: 99 left in stock

Product Overview The Honeywell FC-TSDO-0824C functions as a high-integrity Safe Digital Output module for the Safety Manager SC (S300 IOTA) series. This module interfaces...

SKU: FC-TSDO-0824C

Manufacturer: Honeywell
Product No.: FC-TSDO-0824C
Product Type: Digital Output Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 350g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The Honeywell FC-TSDO-0824C functions as a high-integrity Safe Digital Output module for the Safety Manager SC (S300 IOTA) series. This module interfaces the central safety controller with critical field actuators, such as solenoids and emergency shutdown valves (ESV), requiring precise 24VDC control signals. Designed for the most rigorous Safety Instrumented Functions (SIF), it carries a SIL3 certification to ensure process safeguarding in volatile environments. We provide this unit as 100% Brand New and Original, ensuring your safety architecture meets the highest manufacturer and regulatory standards.

Technical Specifications

Attribute	Specification Value
Model Number	FC-TSDO-0824C
Channels	8 Independent Digital Outputs
Output Voltage	24 VDC Nominal
Max Switching Current	Up to 2 A per channel
Input Voltage Range	24–30 VDC
Safety Integrity Level	SIL3 (IEC 61508 Compliant)
Isolation	Channel-to-Channel & Channel-to-System Bus
Operating Temperature	–40°C to +85°C
Environmental Rating	IP20 (Cabinet Installation)
Hot-Swap Support	Yes
Dimensions	240 × 109 × 80 mm

Engineering Advantages

High-Current Drive Capability: Each of the 8 channels supports up to 2 A of switching current. This high-power output allows the module to drive large solenoids and heavy-duty interposing relays directly, often eliminating the need for additional external amplification hardware.
SIL3 Safety Integrity: The FC-TSDO-0824C executes internal safety protocols and redundant diagnostic checks to meet SIL3 requirements. It ensures that critical final control elements respond correctly during Emergency Shutdown (ESD) or Fire and Gas (F&G) scenarios.
Advanced Line Monitoring: Integrated diagnostics perform continuous "Dark Test" pulses to verify the health of the output circuitry and the field wiring. The module identifies open-circuit and short-circuit conditions immediately, providing real-time feedback to the controller to prevent "fail-to-danger" events.
Galvanic Signal Isolation: Robust isolation between individual channels and the system backplane prevents electrical noise and surges from migrating through the rack. This protects the CPU and adjacent I/O modules from field-side interference.
Extreme Climate Resilience: The industrial-grade components withstand operating temperatures from –40°C to +85°C. This enables deployment in unheated remote instrument enclosures (RIEs) in extreme geographic locations without risking logic errors or hardware failure.
Non-Disruptive Maintenance: The module supports hot-swapping. Maintenance personnel can replace a faulty unit without powering down the Safety Manager SC or interrupting the execution of other safety-critical loops.

FAQs

Can the FC-TSDO-0824C drive 120VAC solenoids?

No. The FC-TSDO-0824C provides 24VDC outputs. To control 120VAC or 240VAC loads, you must use the 24VDC signal to trigger a safety-rated interposing relay.
What is the difference between the standard and "C" version?

The "C" suffix typically denotes a version with specific coating or engineering revisions designed for the S300 IOTA platform, ensuring better protection against corrosive industrial atmospheres and long-term hardware stability.
How does the module handle short circuits in the field?

The module features built-in overload protection. If a field-side short circuit occurs, the diagnostics immediately detect the overcurrent condition, isolate the specific channel, and report a fault to the Safety Manager console.
Is this a 100% Brand New product?

Yes. We supply only 100% Brand New and Original Honeywell modules. Each unit arrives in factory-sealed packaging to guarantee authenticity and original performance specifications.
