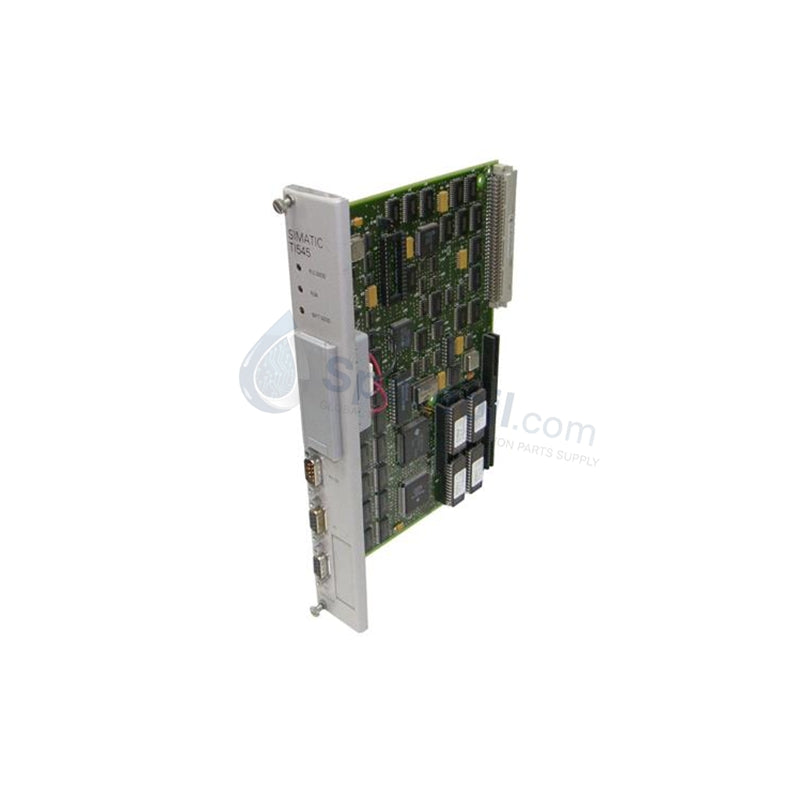

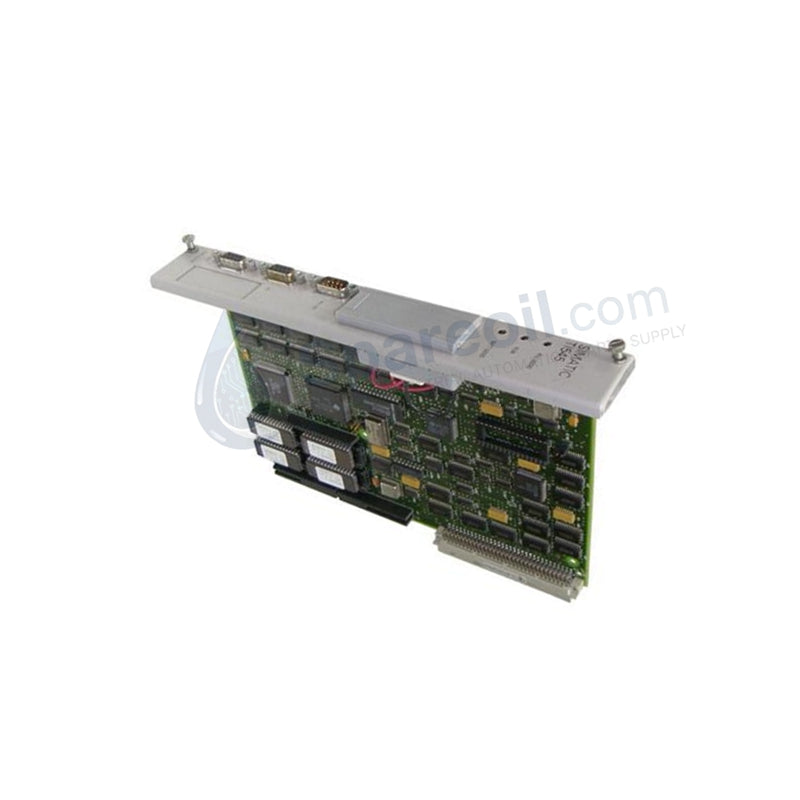

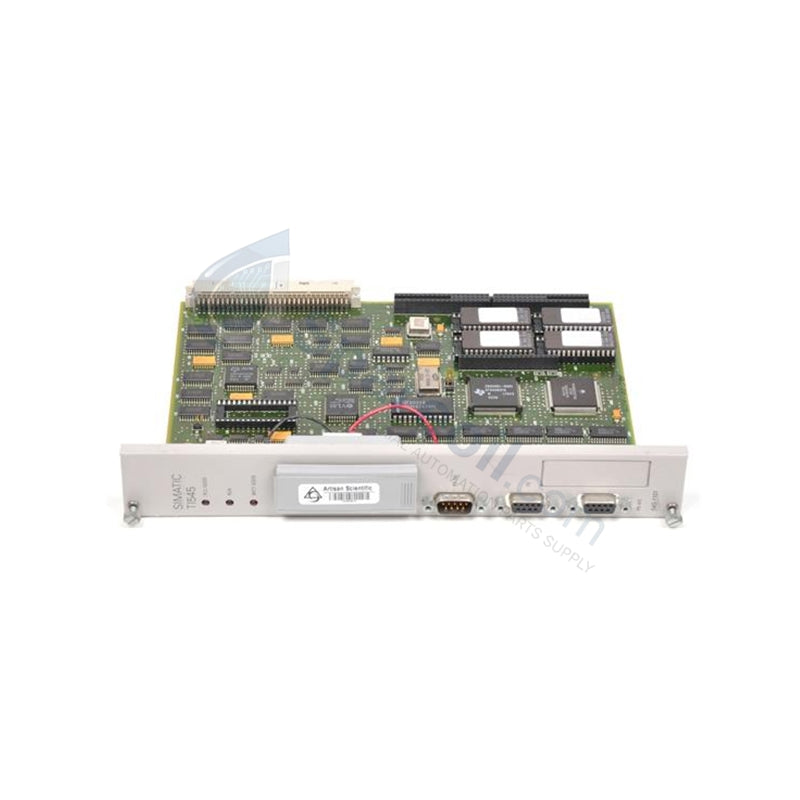

Siemens 545-1101 Simatic TI545 CPU Module

Configured for industrial automation and process control in TI 505 subrack architectures, the Siemens 545-1101 (545-1101 CPU Module) provides direct physical/electrical execution.

Hardware Specifications

Parameter Specification
Model 545-1101
Brand Siemens
Origin Japan
Weight 0.45 kg (0.99 lbs net / 1.1 lbs shipping bounds)
Dimensions Standard TI 505 series single-slot module size
Operating Temp 0 deg C to +60 deg C (Standard chassis operating constraints)
Power Consumption Drawn from backplane bus power supply module
Memory Capacity 192 KB user memory (28 K Words)
Integrated Interfaces 1 x RS-232, 1 x RS-422, 1 x Local I/O base channel
Control Capabilities PID loop control, analog alarms, SFPGMs, SFSUBs
I/O Bus Scaling Supports TI 505 discrete/analog hardware and PROFIBUS-DP drops

I/O Density Scaling and Local Subrack Backplane Processing

The CPU executes control instructions written in Relay Ladder Logic and special function blocks directly over the parallel subrack backplane bus. It manages external configurations by addressing remote clusters, maintaining optimal internal backplane bus communication velocity indexes during peak cyclical processing. This localized architecture processes discrete and analog transactions across complex matrices, stabilizing data exchange rates while scaling local and remote I/O density points over the unified base line.

Frequently Asked Questions

Q: Can the 545-1101 CPU module be pulled from the backplane rack while the power supply is actively energized?

A: No. The TI 505 hardware architecture does not support hot-swap functionality. Removing the processor card under load can cause permanent logic gate corruption, register execution faults, or severe electrical arcs across the backplane connector pins.

Q: How is the volatile user application memory sustained during a total system power de-energization?

A: Memory backup is maintained via an internal lithium battery assembly housed on the motherboard layout. A failure of this cell during a power outage results in a complete loss of loaded configurations and system variables.

Field Installation Guidelines

  • Chassis Slot Alignment: Insert the module vertically into the dedicated CPU slot of the TI 505 base, using the top and bottom guide rails to ensure straight insertion into the backplane connectors.
  • Retention Screw Torque: Tighten the upper and lower panel retention screws directly into the subrack chassis to establish proper grounding contact and prevent shifting from vibration.
  • Serial Port Shielding: Ground all RS-232 and RS-422 serial cable shields at the rack enclosure entry point to prevent external electromagnetic interference from disrupting programming or SCADA telemetry.
