6DD1602-0AE0 Siemens SIMADYN D Datasheet & Technical Manual

Availability: 99 left in stock

Siemens 6DD1602-0AE0 SIMADYN D Processor Module The Siemens 6DD1602-0AE0, also cataloged as the 6DD1602-0AE0 Processor Module, operates as a dedicated...

SKU: 6DD1602-0AE0

Manufacturer: Siemens
Product No.: 6DD1602-0AE0
Product Type: CPU Processors
Product Origin: Germany
Payment:T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

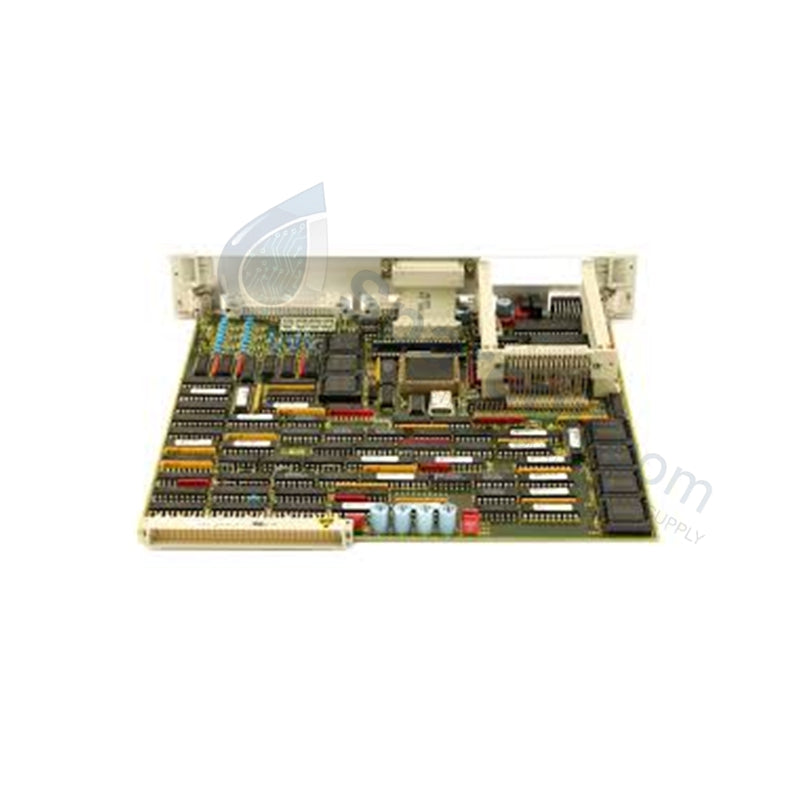

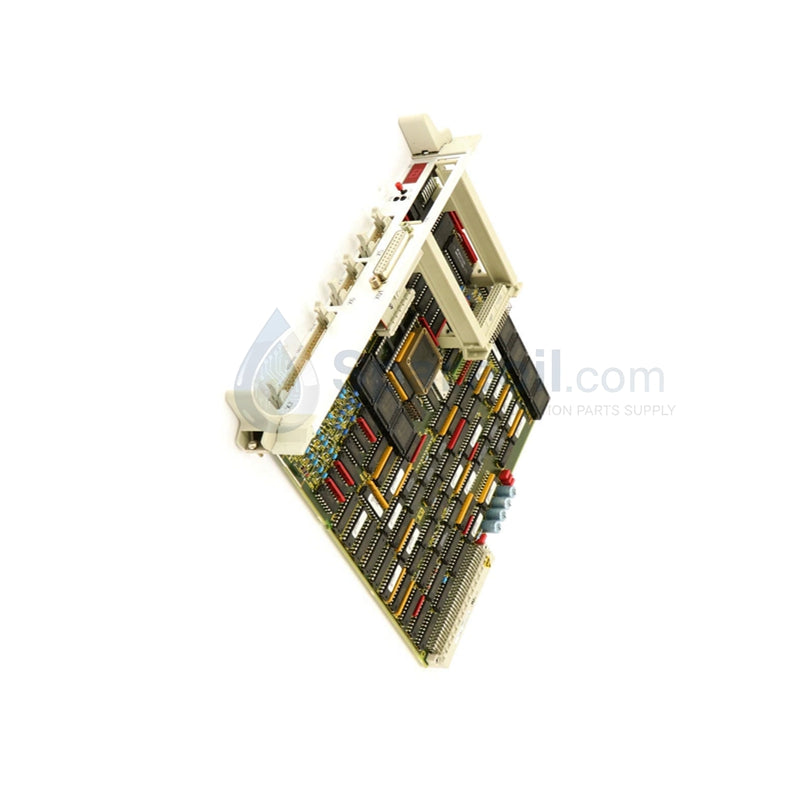

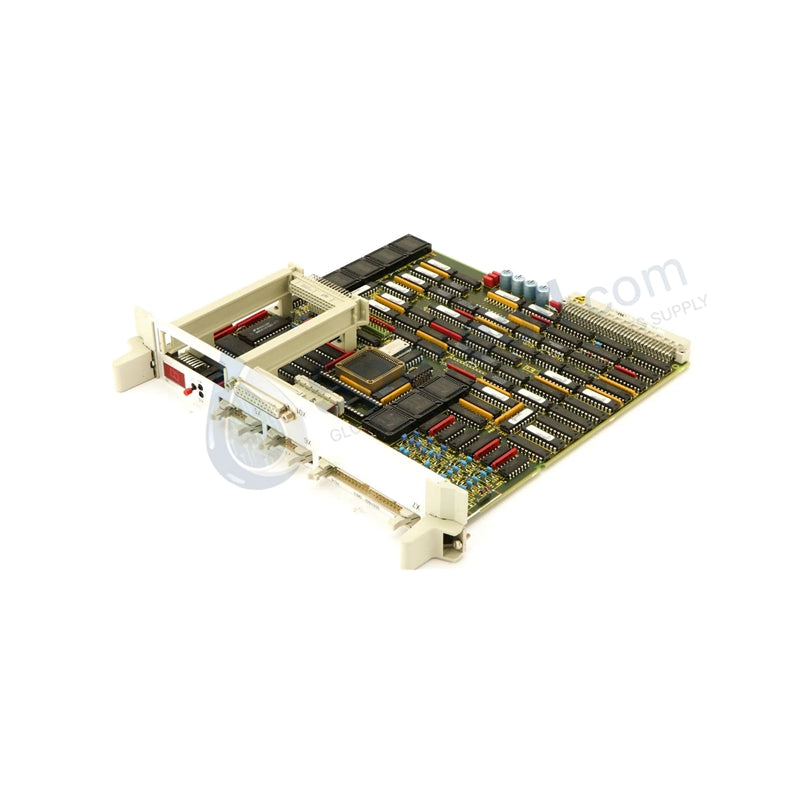

Siemens 6DD1602-0AE0 SIMADYN D Processor Module

The Siemens 6DD1602-0AE0, also cataloged as the 6DD1602-0AE0 Processor Module, operates as a dedicated hardware component for high-performance processing tasks within SIMADYN D and SIMOVERT control system platforms.

Hardware Specifications

Parameter	Specification
Model	6DD1602-0AE0
Brand	Siemens
Origin	Germany
Weight	Standard industrial weight per SIMADYN D module specification
Dimensions	Standard subrack card dimensions for SIMADYN D enclosures
Operating Temp	Standard industrial limits per SIMADYN D module specification
Power Consumption	Subrack backplane bus derived
Series	SIMADYN D PS16
Application	SIMOVERT and SIMADYN D system control processing
System Family	SIMADYN D

Backplane Bus Communication Velocity and Deterministic Networks

The 6DD1602-0AE0 utilizes multi-bus parallel processing interfaces to optimize backplane bus communication velocity across the internal subrack assembly. Engineered for high-speed dynamic control loops, this processor module handles large-scale data structures and high-density I/O routing synchronously with Profinet or PROFIBUS DP deterministic networks. It maintains strict instruction cycle times required for intricate drive calculations and motion profiling within SIMOVERT hardware topologies. System-wide coherence is managed through strict parameters that enforce complete firmware flash compatibility across all active backplane nodes.

Frequently Asked Questions

Q: What specific platform subracks accept the 6DD1602-0AE0 module?

A: This processing card is engineered to slide directly into the standard hardware slots of the SIMADYN D subrack chassis, interfacing through the integrated L-bus and C-bus connections.

Q: Is hot-swapping supported for the 6DD1602-0AE0 module under line voltage?

A: No. The SIMADYN D framework requires a total system electrical shutdown before extracting or inserting the processor module to avoid structural damage from backplane voltage transients.

Q: How are execution faults or runtime errors communicated by this processing component?

A: Diagnostic states and hardware faults are communicated via real-time data packets across the backplane bus to the main system controller and mapped to front-facing system interfaces.

Field Installation Guidelines

Subrack Slide Insertion: Ensure the subrack frame is powered down completely. Align the top and bottom card edges with the vertical chassis channels, pushing the module straight back until the rear connectors plug tightly into the passive backplane.
Chassis Retention Screws: Tighten the front panel integration screws into the subrack frame to ensure robust mechanical retention and an unbroken ground plane loop with the chassis.
Static Discharge Control: Always manipulate the module using an approved ESD wrist strap connected to cabinet earth ground to protect the internal processing logic from static electricity damage.
