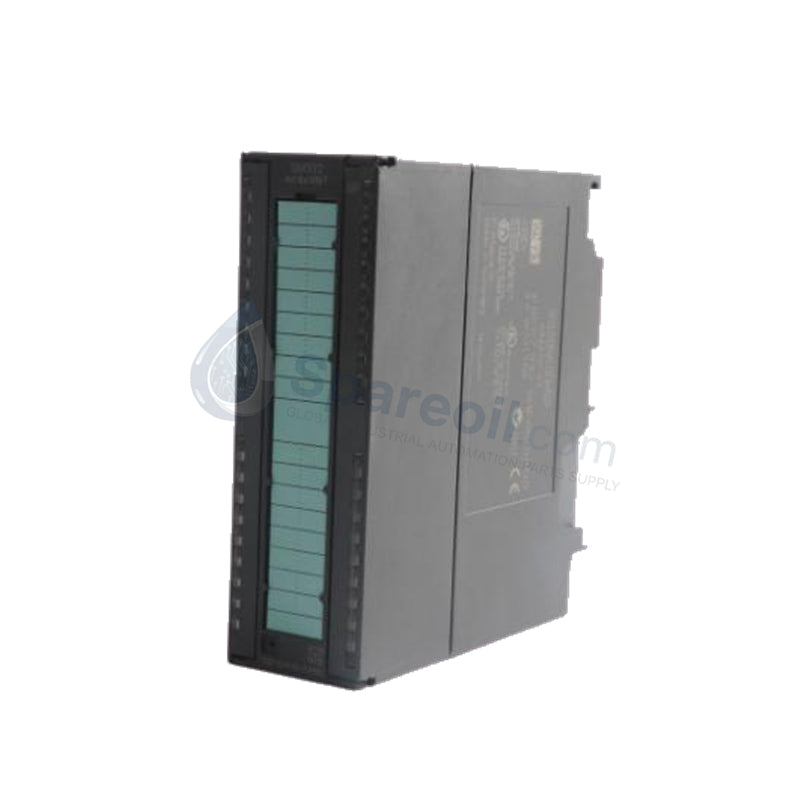

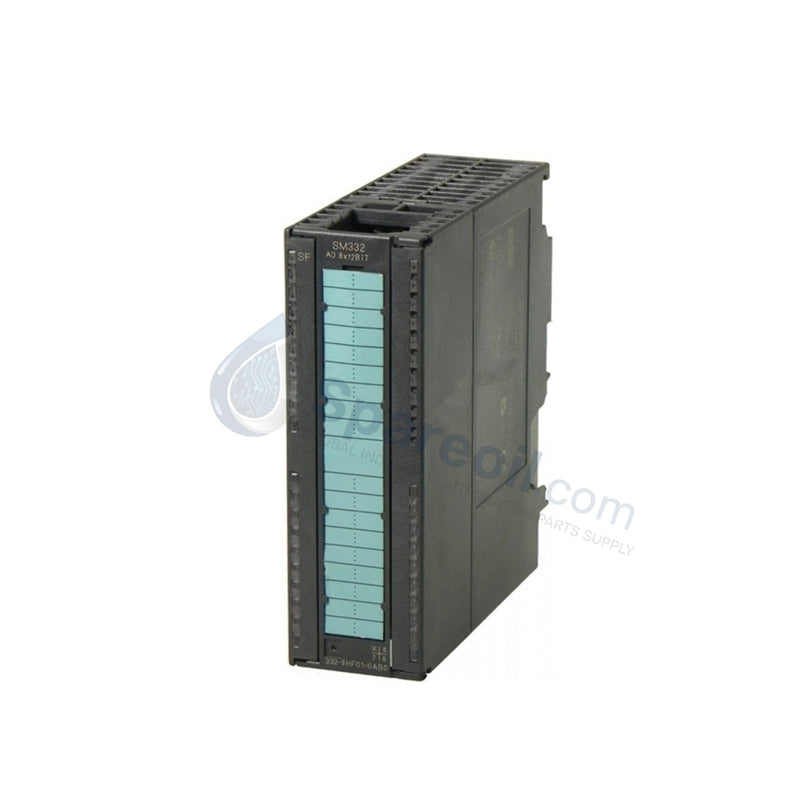

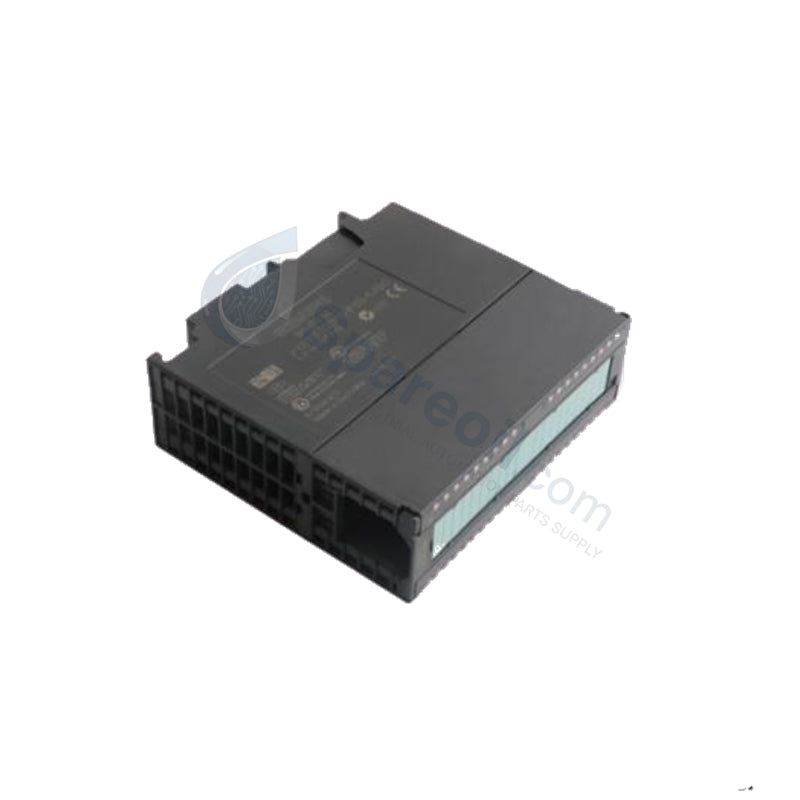

Siemens 6ES7332-5HF00-0AB0 SIMATIC S7-300 Analog Output Module

The Siemens 6ES7332-5HF00-0AB0, also cataloged as the Siemens 6ES7332-5HF00-0AB0 Analog Output Module, operates as a dedicated hardware component for generating analog voltage and current control signals within SIMATIC S7-300 automation platforms.

Hardware Specifications

Parameter Specification
Model 6ES7332-5HF00-0AB0
Brand Siemens
Origin Germany
Weight 0.272 kg
Dimensions 40 mm x 125 mm x 117 mm
Operating Temp 0 to 60 deg C
Power Consumption 6 W typical power loss
Number of Analog Outputs 8
Resolution 11/12 bits
Output Ranges 0-10 V, 1-5 V, +/-10 V, 0-20 mA, 4-20 mA
Load Resistance (Voltage) Minimum 1 kOhm
Load Resistance (Current) Maximum 500 Ohm
Isolation Galvanic isolation between channels and backplane; tested at 500 V DC
Required Front Connector 40-pin
Max Cable Length 200 m shielded

Profinet / EtherNet/IP Deterministic Networks and Backplane Bus Routing

The 6ES7332-5HF00-0AB0 interfaces directly with the central processing unit via the active backplane bus routing assembly, allowing execution of deterministic I/O updates synchronous with network master cycles over Profinet or PROFIBUS network nodes. The internal hardware architecture handles high-density data scaling by updating all 8 channels across an internal conversion cycle of approximately 0.6 ms per channel. Firmware flash compatibility across the SIMATIC platform ensures consistent data frame interpretation. This enables hot-swap removal and insertion actions when seated into an active backplane bus module frame without destabilizing surrounding channel communication.

Frequently Asked Questions

Q: Is hot-swapping supported for the 6ES7332-5HF00-0AB0 module during system RUN mode?

A: Yes. Removing and inserting the module is possible during RUN mode, provided the module is installed on an active backplane bus module rail assembly.

Q: What happens to the analog outputs if communication with the central S7-300 CPU is lost?

A: The module can be configured via hardware parameterization to either substitute a predefined safe value or retain the last valid output command value upon backplane bus communication failure.

Q: Can voltage and current outputs be mixed across different channels simultaneously on the same module?

A: Yes. The 8 channels can be individually configured for distinct voltage or current ranges using the parameter settings in the programming software and adjusting the internal hardware configuration options.

Field Installation Guidelines

  • Front Connector Wiring: Secure all field wiring to the required 40-pin front connector before pivoting the connector into engagement with the module housing. Fasten the central mounting screw to prevent connection loss.
  • Shielding Protocol: Terminate the shields of the 40-20 mA or voltage signal lines at the designated shield bus bar located directly below the module. The shielded cable length must not exceed 200 m.
  • Galvanic Isolation and Grounding: Maintain the integrity of the 500 V DC isolation boundary by keeping low-voltage signal wiring segregated from high-voltage AC distribution paths inside the enclosure. Ensure the DIN rail has a direct copper connection to the functional earth plane.
