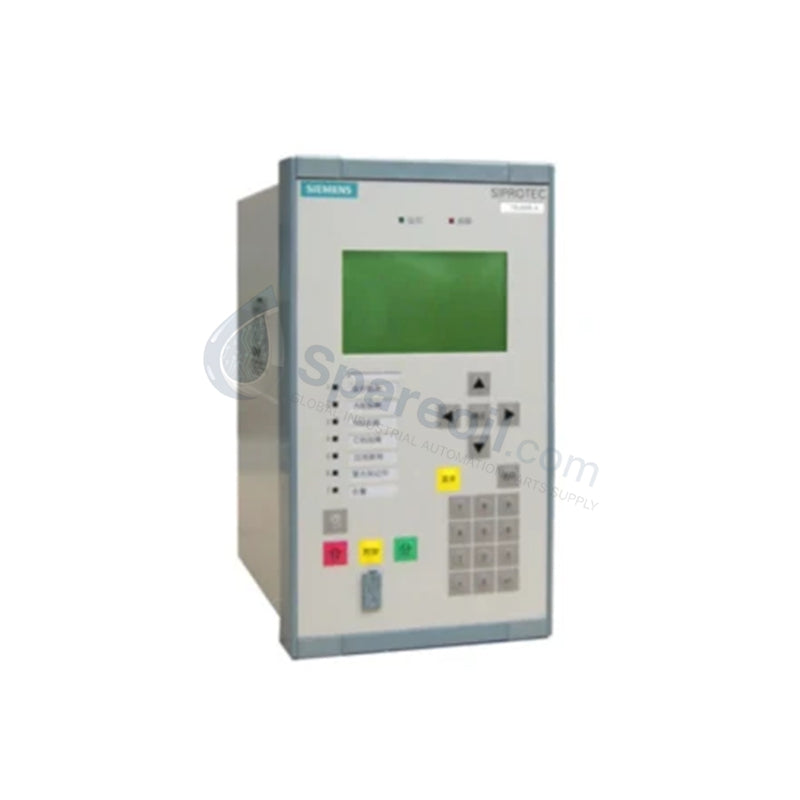

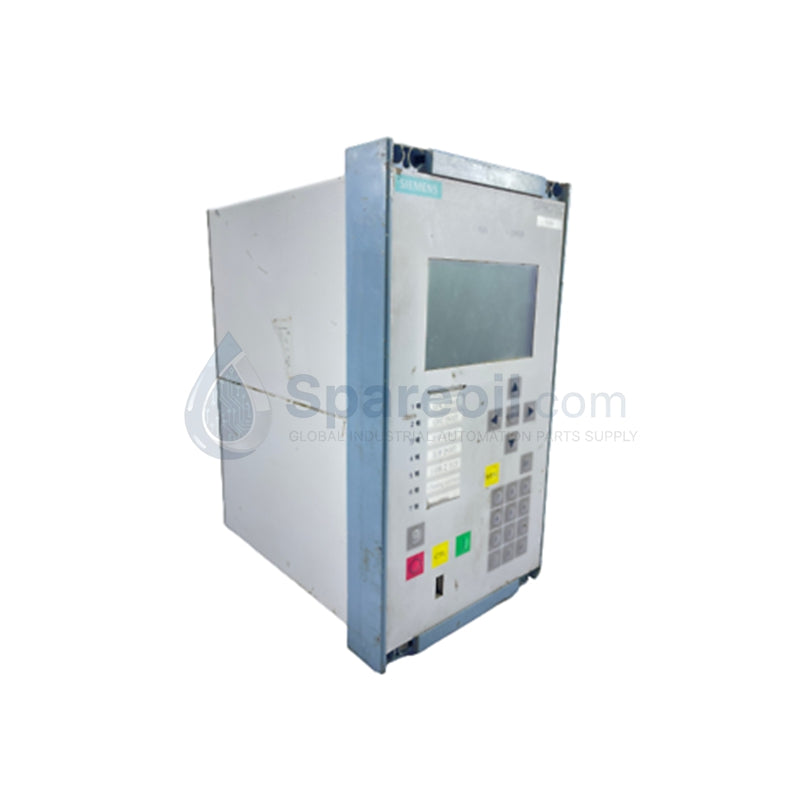

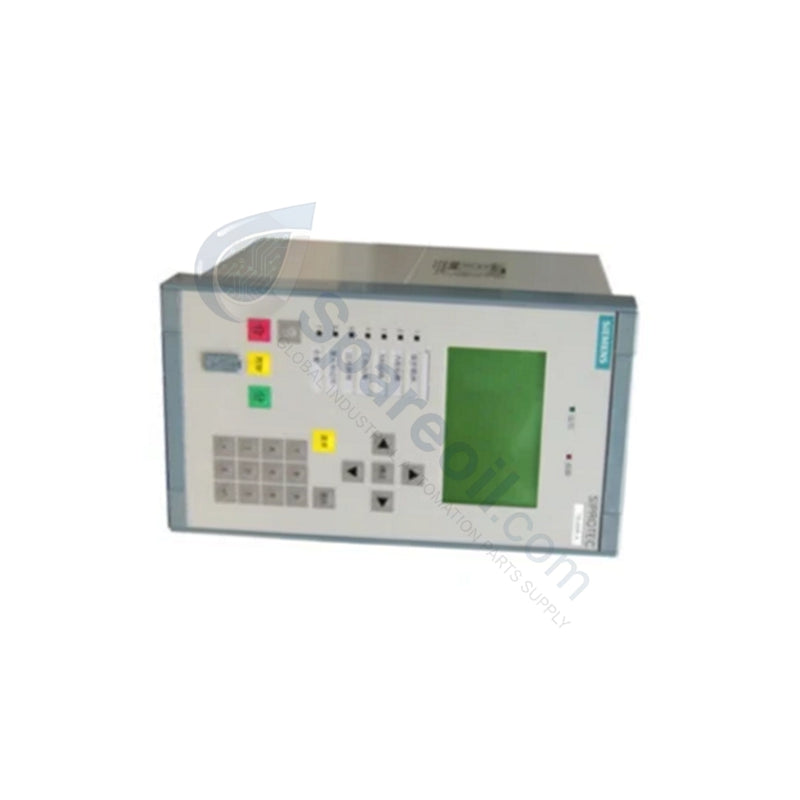

Siemens 7SJ5311-4EA02-1AA0/FF SIPROTEC 7SJ531 Protection Relay

Configured for feeder and motor protection in industrial substations and distribution networks, the Siemens 7SJ5311-4EA02-1AA0/FF (7SJ531 Numerical Protection Relay) provides direct physical/electrical execution.

Hardware Specifications

Parameter Specification
Model 7SJ5311-4EA02-1AA0/FF
Brand Siemens
Origin Germany / USA
Weight 1.43 kg (3.15 lbs)
Dimensions 260 mm x 330 mm x 95 mm
Operating Temp -25 deg C to +60 deg C
Power Consumption Passive measurement overhead; auxiliary voltage bounds 24-250 V DC / 80-230 V AC
Analog Inputs 5 x CT (current transformer), 3 x VT (voltage transformer)
Digital I/O 11 binary inputs, 5 alarm relays, 4 command relays
Protocols IEC 61850, IEC 870-5-103, PROFIBUS, RS485, MODBUS, DNP3
Interface Integrated graphic display with local control keypad matrix

Profinet / EtherNet/IP Deterministic Networks and I/O Density Scaling

The numerical protective architecture interfaces with substations through its comprehensive hardware array, handling concurrent overcurrent, voltage, and frequency protection tasks. Field data mapped over multi-protocol ports ensures integration with centralized monitoring nodes. This I/O density scaling capacity enables instantaneous binary telemetry routing across Profinet / EtherNet/IP deterministic networks when retrofitted with protocol gateway interfaces. This architecture maintains microsecond fault time-stamping accuracy without data dropouts on high-speed system buses.

Frequently Asked Questions

Q: What action must be executed to alter parameter configurations or review structural fault logs?

A: Modifications and diagnostic analytics require a physical connection to a terminal running DIGSI 4 or DIGSI 5 setup software. Parameters cannot be edited through external serial command lines without validating security keys inside the DIGSI environment.

Q: How does the unit react to deep supply voltage fluctuations on the auxiliary power circuit?

A: The broad range switching matrix accepts 24 V DC to 250 V DC and 80 V AC to 230 V AC. Variations remaining inside these calibrated electrical plateaus do not impact trip coil activation speeds or logic board processing stability.

Field Installation Guidelines

  • Enclosure Subpanel Mounting: Mount the chassis in a clean panel layout cut to match the structural depth clearances. Fasten all corner retainers to prevent vibration-induced mechanical stresses.
  • Transformer Secondary Grounding: All current transformer (CT) and voltage transformer (VT) connections must be firmly terminated at the back terminal strips. Ensure common-point grounding rules are strictly maintained to prevent floating high-voltage potentials.
  • Communication Cable Shielding: Lay serial and ethernet lines separated from raw motor power circuits, grounding the line shields at the cable entry gland plates to mitigate induced electromagnetic fields.
