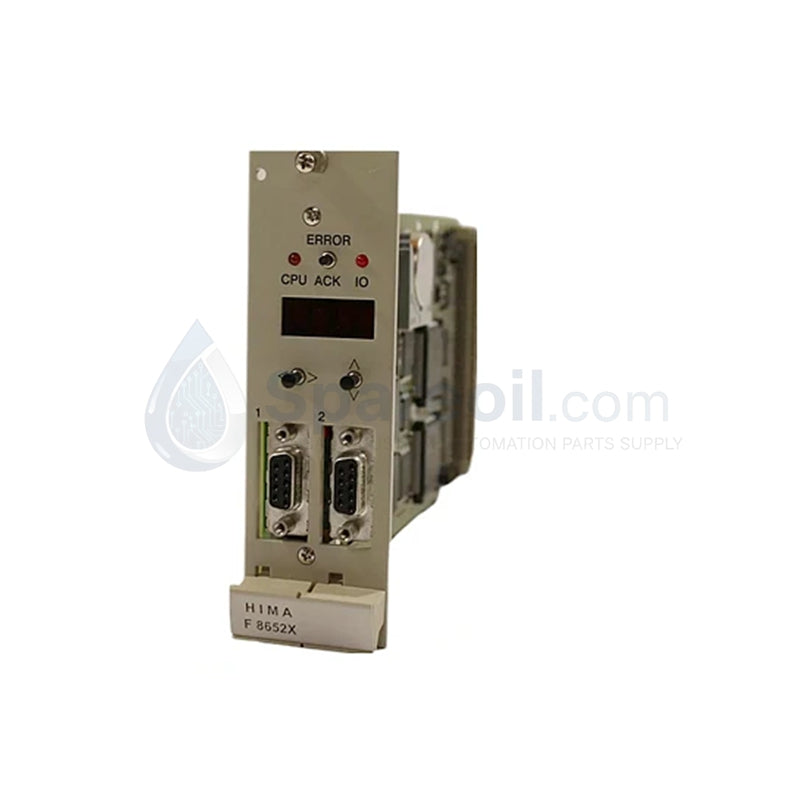

HIMA F-8652X H41q Central Module

The HIMA F-8652X, also cataloged as the F8652X Central Module, operates as a dedicated hardware component for safety-critical logic processing within HIMA PES H41q-MS, H41q-HS, and H41q-HRS system networks. The module processes system input registers and drives safety-related outputs via dual clock-synchronized 32-bit microprocessors operating in an internal execution layout. This multi-board component monitors continuous field variable logic matrices to execute protection loops, maintaining isolation boundaries through transformer-isolated communication paths.

Hardware Specifications

Parameter	Specification
Model	F-8652X
Brand	HIMA Paul Hildebrandt
Origin	Germany
Weight	1.10 kg (2.43 lbs) nominal module mass
Dimensions	8 SU (Standard Units) width / 2 European standard PCBs + 1 Diagnostic PCB structure
Operating Temp	0 to 60 deg C
Storage Temp	-40 to +85 deg C
Power Consumption	5 V DC / 2 A drawn directly from backplane power lines
Processor Configuration	2 x Intel 386EX (32-bit architecture)
Clock Frequency	25 MHz
Memory per Processor	1 MB Flash-EPROM (operating system and user program) / 1 MB SRAM (data storage)
Communication Interfaces	2 x RS-485 serial ports (galvanically isolated)
Integrated Watchdog	24 V DC, 500 mA output, short-circuit proof
Local Diagnostics	4-digit matrix display with selectable status indicators
Safety Integrity Level	SIL 3 certified conforming to IEC 61508 standards
Protection Class	IP20

Triple Modular Redundancy (TMR) 2oo3 Architecture and Fail-Safe State Execution

The HIMA F-8652X ensures continuous safety loop validation by processing arithmetic registers in hardware across dual 25 MHz processor segments. The internal architecture evaluates memory spaces synchronously, matching hardware operations with fail-safe state execution parameters to trigger de-energization loops within sub-millisecond schedules.

When configured within redundant configurations, including integrated multi-channel setups or triple modular redundancy (TMR) 2oo3 architecture systems via external system interlinks, the module performs constant cross-channel data voting. This verification sequence runs alongside a hardware-driven 24 V DC safety watchdog loop, which isolates the 500 mA signal path instantly if an uncorrectable processing discrepancy or execution drift is detected between the core registers.

Frequently Asked Questions

Q: How does the internal safety watchdog react if a clock synchronization error occurs between the two Intel 386EX microprocessors?

A: The hardware clock synchronization logic continuously checks for phase variations. If the execution timing between the two processors drifts beyond the microsecond boundary, the internal watchdog circuit strips power from the 24 V DC, 500 mA output terminal, causing the module to initiate an immediate fail-safe state execution.

Q: What specific parameters are retrievable through the integrated 4-digit front panel matrix display?

A: The 4-digit display provides readouts of internal register health, active system fault codes, current operating system firmware revisions, and communication status parameters across the two isolated RS-485 interfaces via the local selector controls.

Q: Does the F-8652X permit firmware flash updates or modification of the user logic space while the host chassis is running process loops?

A: No. Alterations to the 1 MB Flash-EPROM memory blocks require the safety system to be placed offline or isolated in accordance with SIL 3 certification procedures. Modifying active safety logic during online operation is locked out by hardware line constraints to prevent accidental loss of protective coverage.

Field Installation Guidelines

Remove all primary power sources supplying the target H41q rack frame before sliding the central module into its designated slots.
Align the double-PCB structure with the guide rails corresponding to the assigned 8 SU width spacing, pushing backward until the backplane connectors latch into place.
Secure the integrated mechanical locking fasteners on the front panel to establish low-impedance grounding paths with the primary rack metal framework.
Terminate all field communication links using shielded twisted-pair cables on the RS-485 ports, verifying the shield layer terminates cleanly at the enclosure bulk ground rail.
Route the dedicated 24 V DC safety watchdog signal line through isolated wire ways separate from high-current AC power runs or industrial variable speed drive lines.
