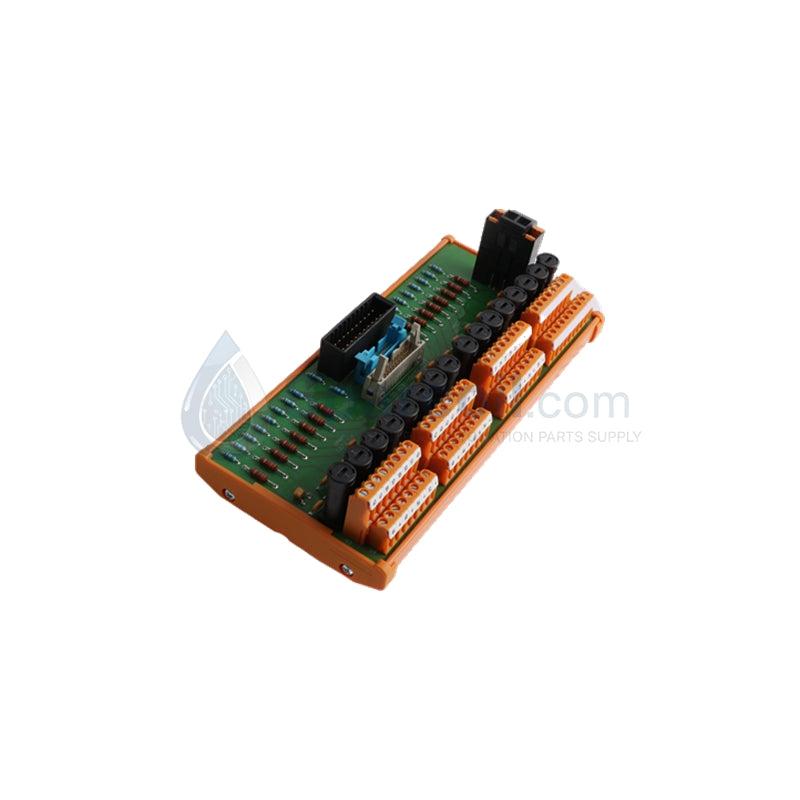

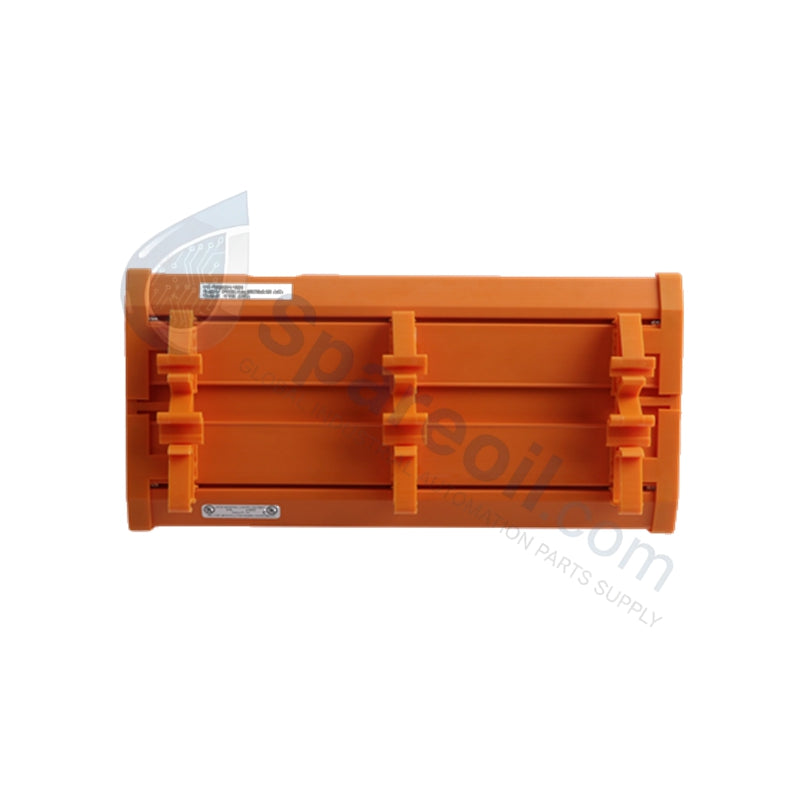

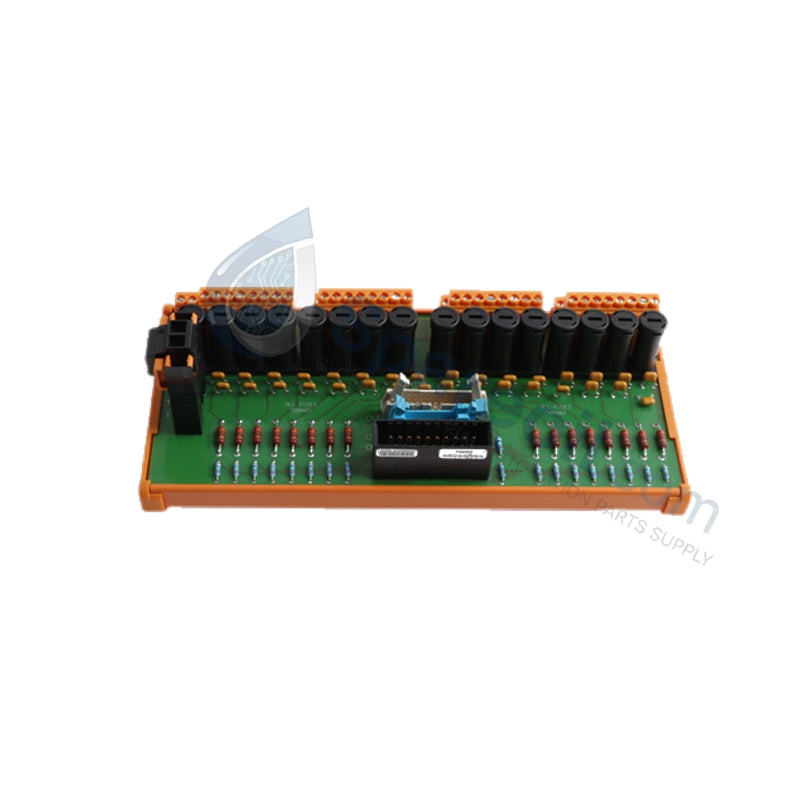

Honeywell FC-TSGAS-1624 24VDC Safe Digital Output FTA

Availability: 99 left in stock

Product Overview The Honeywell FC-TSGAS-1624 is a specialized Field Termination Assembly (FTA) designed for the Honeywell Safety Manager and Experion PKS architectures....

SKU: FC-TSGAS-1624

Manufacturer: Honeywell
Product No.: FC-TSGAS-1624
Product Type: Experion PKS Hardware
Product Origin: USA
Payment:T/T, Western Union
Weight: 520g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The Honeywell FC-TSGAS-1624 is a specialized Field Termination Assembly (FTA) designed for the Honeywell Safety Manager and Experion PKS architectures. This module serves as the primary interface for safe digital output signals, providing robust termination and high-integrity signal grounding. By managing the physical connection between field devices and the I/O bus, the FC-TSGAS-1624 ensures clean communication and protects the system from electrical disturbances. We supply this module as 100% Brand New and Original, ensuring your safety-instrumented system (SIS) maintains factory-certified performance and compliance.

Technical Specifications

Attribute	Details
Manufacturer	Honeywell
Model Number	FC-TSGAS-1624 (FC-TSGASH-1624)
Module Type	Field Termination Assembly (FTA)
Primary Function	Termination & Signal Grounding
Operating Voltage	24 VDC (System Supplied)
Operating Temperature	-40°C to +70°C
Dimensions	22.5 cm x 10.8 cm x 8.5 cm
Weight	0.52 kg (Net weight)
Housing Material	Industrial-grade Aluminum with Protective Coating
Compatibility	Honeywell Safety Manager, Experion PKS
Certifications	UL, CE, CSA, ISO 9001

Engineering Advantages

Precision Signal Grounding: The FC-TSGAS-1624 integrates advanced grounding paths that effectively drain electrical noise away from sensitive I/O channels. This stabilization prevents signal jitter and ensures that the Safety Manager receives accurate, real-time data from field-mounted actuators and valves.
SIL-Rated Safety Support: Specifically engineered for safety-critical environments, this FTA supports SIL-rated applications. It facilitates the high-availability communication required for Emergency Shutdown (ESD) and Fire & Gas (F&G) systems where signal integrity is non-negotiable.
Ruggedized Environmental Coating: Honeywell applies a specialized protective coating to the industrial-grade aluminum housing. This shielding resists corrosion and chemical exposure, making the module ideal for the harsh atmospheres found in petrochemical refineries and offshore platforms.
Optimized Cabinet Footprint: Despite its robust functionality, the module features a compact form factor. This allows for high-density mounting within standard control cabinets, simplifying the wiring of complex digital output loops without requiring excessive rack space.
Reliable Thermal Management: The hardware design ensures stable operation across an extreme temperature range of -40°C to +70°C. This durability eliminates the need for external cooling in many industrial deployments, reducing overall infrastructure costs.

FAQs

What is the primary role of the FC-TSGAS-1624 in a Safety Manager system?

This module acts as the physical termination point for safe digital outputs. It provides a secure landing for field wiring and manages signal grounding to protect the I/O bus from electrical interference and voltage spikes.

Does the FC-TSGAS-1624 support both Safety Manager and Experion PKS?

Yes. Honeywell designed this module to integrate seamlessly with both Safety Manager and Experion PKS I/O bus systems, allowing for standardized termination across various Honeywell-controlled process environments.

How does the signal grounding feature improve system reliability?

By providing a dedicated, low-impedance path for signal grounding, the FC-TSGAS-1624 minimizes electrical noise. This reduces the risk of data corruption or "false trips" in safety loops, which is critical for maintaining plant uptime.

Is this a refurbished or "pull-out" unit?

Absolutely not. We emphasize that every Honeywell FC-TSGAS-1624 we provide is 100% Brand New and Original. Each module arrives in original factory packaging with a full 12-month warranty, ensuring it meets all original manufacturer specifications.
