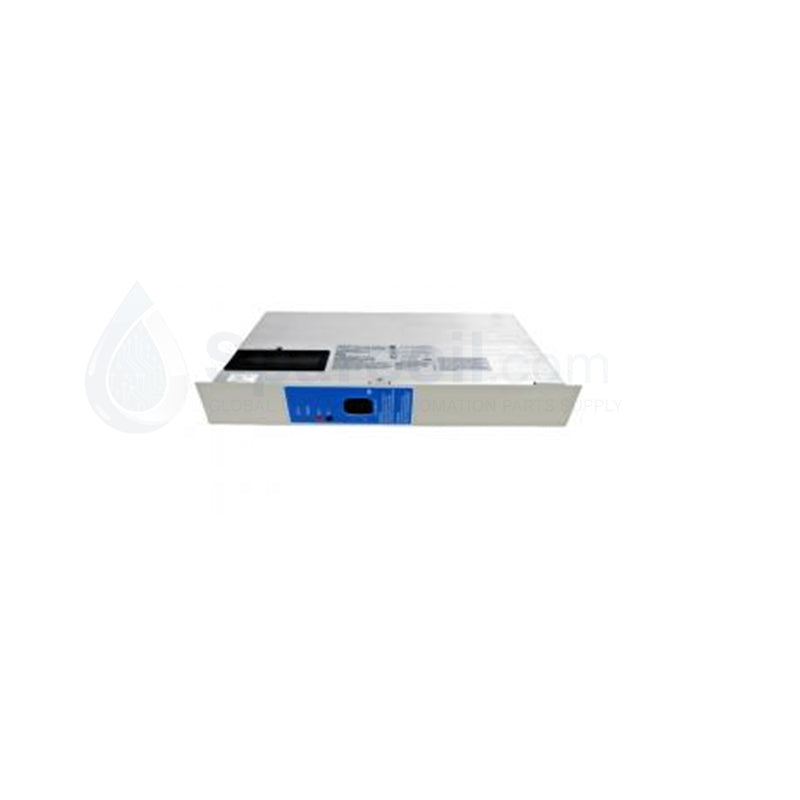

SPS5710 Honeywell 51199929-100 Power Expansion Module

SPS5710 Honeywell 51199929-100 Power Expansion Module | New Stock

Availability: 99 left in stock

Honeywell SPS5710 51199929-100 PLC Expansion Power Unit The Honeywell SPS5710, also cataloged as the 51199929-100 Industrial Power Supply & Expansion...

SKU: SPS5710 51199929-100

Manufacturer: Honeywell
Product No.: SPS5710 51199929-100
Product Type: Analog Input Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 1200g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Honeywell SPS5710 51199929-100 PLC Expansion Power Unit

The Honeywell SPS5710, also cataloged as the 51199929-100 Industrial Power Supply & Expansion Module, operates as a dedicated hardware component for stabilized voltage regulation and signal conditioning within Honeywell PLC and distributed control networks. The module executes direct step-down conversion of a nominal 220 V AC utility line into a regulated 24 V DC power envelope, simultaneously driving parallel analog expansion tracking pathways. Built-in high-grade transformer layers establish a resilient barrier that blocks transient migration between field-side processing loops and the internal logic backplane.

Hardware Specifications

Parameter	Specification
Model	SPS5710
Brand	Honeywell
Origin	United States
Weight	1.20 kg (2.65 lbs) net weight
Dimensions	Standard Honeywell industrial expansion chassis footprint
Operating Temp	0 to 60 deg C
Storage Temp	-40 to +85 deg C
Input Voltage	220 V AC nominal
Output Voltage	24 V DC regulated power rail
Output Signal Options	0-10 V, +/-10 V, 0-20 mA, 4-20 mA
Signal Accuracy	+/-0.03% of full scale
Linearity	+/-0.01% across full operating span
Isolation	1500 Vrms transformer isolation barriers
Transient Protection	ANSI/IEEE C37.90.1 surge protection standards
Noise Suppression	CMRR 160 dB / NMR 85 dB @ 60 Hz
Response Time	< 10 ms step response window
Protection Rating	IP20

4-20 mA HART Loop Protocol and Channel-to-Channel Isolation

The Honeywell SPS5710 implements high-order noise suppression components, yielding a common-mode rejection ratio (CMRR) of 160 dB and a normal-mode rejection (NMR) of 85 dB at 60 Hz. This level of attenuation prevents high-frequency switching distortion from compromising lines utilizing the 4-20 mA HART loop protocol.

The linear regulation circuits preserve signal profile definitions down to a strict $\pm0.01\%$ linearity constraint. This precision ensures that frequency-modulated digital packets pass cleanly through intermediate loops without suffering wave deformation. This electrical performance complements systems requiring high channel-to-channel isolation by preventing voltage crosstalk or common return loop offsets from introducing measurement skew during high-density analog conversions.

Frequently Asked Questions

Q: How does the ANSI/IEEE C37.90.1 compliant protection circuit handle high-energy inductive transients? A: The module contains solid-state clamping diodes and transient voltage suppressors across the input and signal terminals. When a field-side spike occurs, these components clamp the voltage rise within nanoseconds, diverting the surge current to the chassis grounding tab and isolating the system backplane from the electrical transient.

Q: Can the analog output signal configuration be altered between 0-10 V and 4-20 mA while the power unit is actively loaded? A: No. Modifying the output signal selection requires adjusting internal terminal jumpers or updating system configuration parameters. Changing these signal definitions during runtime can induce step variations that may cause downstream modules to log over-current or out-of-range faults.

Q: Does the 1500 Vrms transformer isolation protect the unit against continuous DC ground loops? A: Yes. The galvanic isolation layer breaks the physical metallic paths between the 220 V AC source, the 24 V DC output, and the analog expansion circuits. This separation stops continuous DC ground loop currents from circulating through the field grounding blocks and distorting the analog instrumentation registers.

Field Installation Guidelines

Disconnect and tag out the primary 220 V AC utility feeder lines before mounting or performing terminal changes on the expansion hardware.
Mount the module securely inside an IP54 or better industrial enclosure using standard DIN rail tracks or direct panel surface standoffs to preserve the IP20 base rating.
Keep all low-voltage signal wiring—such as the 4-20 mA or 0-10 V lines—separated from the high-voltage 220 V AC supply cables by a minimum distance of 30 cm inside the wire ways.
Use shielded twisted-pair cables for all analog configurations, terminating the drain wire at a single point on the enclosure bulk ground plate.
Connect a low-impedance copper strap from the designated module ground terminal directly to the central chassis earth bar to ensure proper performance of the transient protection networks.
