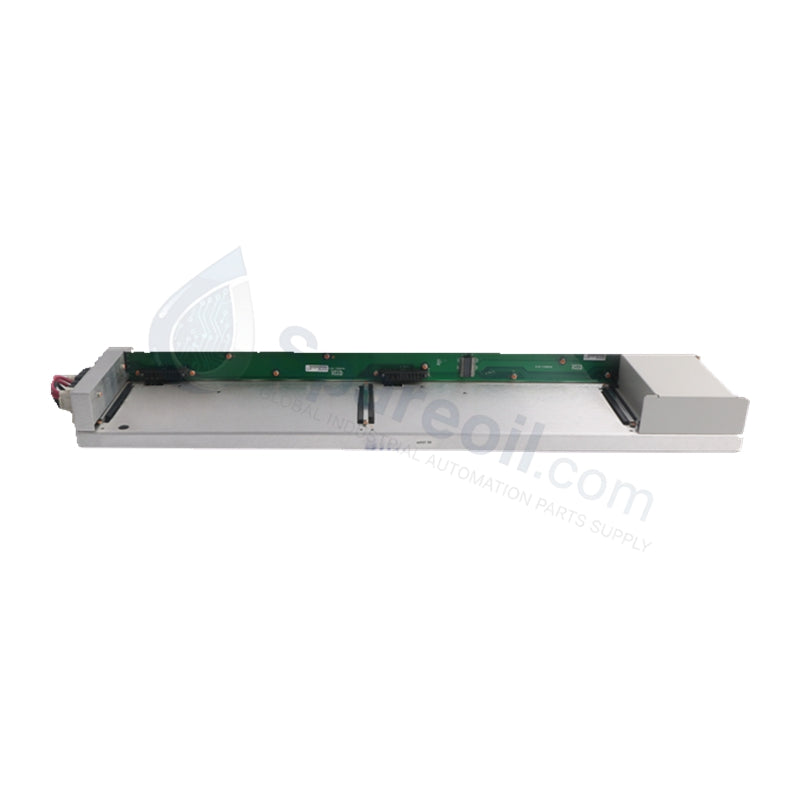

SPS5713 Honeywell Transistor Device Datasheet & Technical Manual

Availability: 99 left in stock

Honeywell SPS5713 51199930-100 Main Power Rack Transistor Device The Honeywell SPS5713, also cataloged as the 51199930-100 Main Power Rack Transistor...

SKU: SPS5713 51199930-100

Manufacturer: Honeywell
Product No.: SPS5713 51199930-100
Product Type: Main Power Rack Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Honeywell SPS5713 51199930-100 Main Power Rack Transistor Device

The Honeywell SPS5713, also cataloged as the 51199930-100 Main Power Rack Transistor Device, operates as a dedicated hardware component for high-frequency switching and power modulation within Honeywell main power rack networks. The module executes precise energy regulation by switching DC bus potentials ranging from 24 V DC to 100 V DC via built-in solid-state transistor matrices. Operating at switching frequencies up to 50 kHz, the hardware shapes active power distribution profiles under direct digital control while maintaining serial tracking link feedback.

Hardware Specifications

Parameter	Specification
Model	SPS5713
Brand	Honeywell
Origin	United States
Weight	1.00 kg (2.20 lbs) net mass
Dimensions	100 mm x 100 mm x 100 mm
Operating Temp	-20 to +70 deg C
Storage Temp	-40 to +85 deg C
Power Rating	1000 W maximum throughput capacity
Operating Voltage Range	24 V to 100 V DC
Rated Current Span	10 A to 20 A continuous
Output Frequency Range	20 kHz to 50 kHz
Control Modulation	Pulse Width Modulation (PWM) / Pulse Position Modulation (PPM)
Communication Interface	1 x RS-485 port (electrically isolated)
Logic Power Consumption	25 W maximum drawn from internal rack rails
Cooling Method	Thermal conductive compound interface to primary heatsink block
Protection Class	IP20

4-20 mA HART Loop Protocol and Channel-to-Channel Isolation

The Honeywell SPS5713 implements an isolated RS-485 serial communication port to report internal power diagnostics, tracking metrics, and thermal boundary variables without introducing loop noise. The high-speed 50 kHz switching topology is physically separated from low-voltage instrument networks, ensuring that high-frequency harmonics do not contaminate adjacent 4-20 mA HART loop protocol lines.

The transformer-isolated data structures prevent the development of common-mode voltage spikes across the chassis. This design preserves the performance of down-line analog instrumentation, supporting clean multi-drop frequency-shift keying (FSK) data paths by matching the strict parameters mandated by high channel-to-channel isolation field configurations.

Frequently Asked Questions

Q: How are high-frequency PWM switching harmonics restricted from causing measurement drift in adjacent analog racks? A: The module relies on internal high-frequency filtering networks and localized chassis shielding barriers. These components restrict radiated electromagnetic emissions and contain switching noise within the 24-100 V DC power bus, keeping high-frequency harmonics from degrading nearby low-level signal loops.

Q: What structural issues arise if the thermal conductive compound interface dries or detaches from the heatsink? A: A degradation of the thermal conductive layer reduces heat transfer efficiency out to the main rack heatsink structure. This leads to rapid heat buildup within the power transistor junctions under heavy 20 A loads, triggering internal thermal shutdowns to prevent hardware failure.

Q: Can the RS-485 interface be utilized to rewrite the base PWM carrier frequency during active, high-current switching cycles? A: No. Modifying base modulation variables or altering control modes between PWM and PPM must be executed under interlocked standby conditions. Changing carrier frequencies during live high-current switching can cause timing conflicts that risk tripping over-current protection circuits.

Field Installation Guidelines

De-energize all high-voltage DC feeder lines and isolate the main power rack backplane before inserting or extracting the transistor assembly.
Inspect the rear thermal pad interface and apply a uniform layer of specified thermal conductive compound before seating the module against the chassis heatsink.
Align the module pins with the rack socket contacts, pushing firmly until the hardware blocks are seated, then tighten all mechanical retention screws.
Terminate the serial RS-485 tracking links using shielded twisted-pair conductors, making sure the shield terminates exclusively at the main panel earth ground lug.
Maintain a minimum physical spacing profile of 30 cm between the 100 V DC power output cables and any sensitive analog instrumentation or sensor lines.
