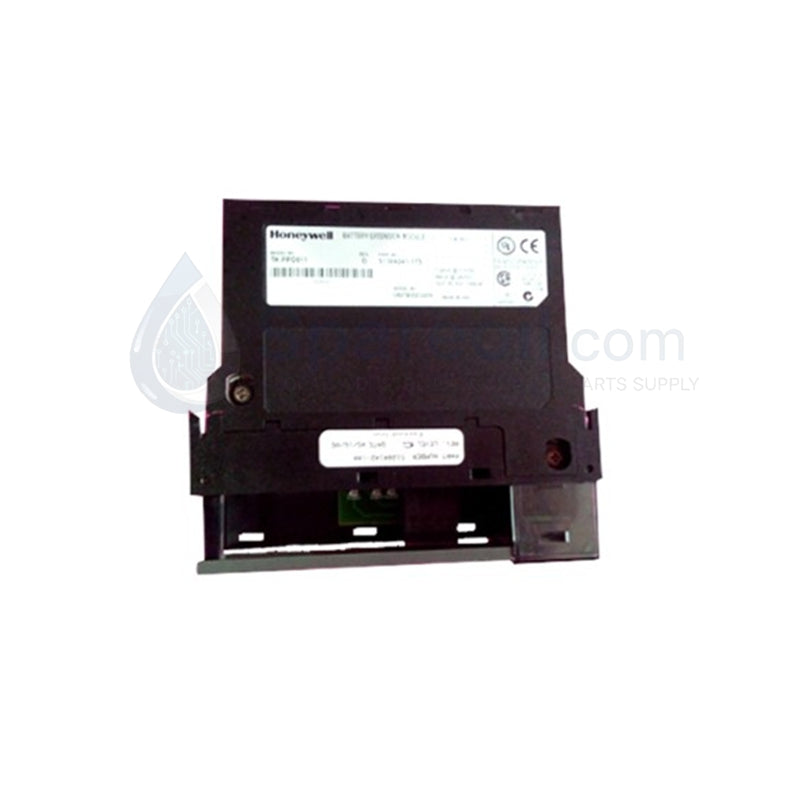

Honeywell TC-IXR061 Experion Isolated RTD Analog Input Module

Configured for high-precision temperature loop monitoring in Experion PKS and LS series control architectures, the Honeywell TC-IXR061 (TC-IXR061 Isolated Analog Input Module) provides direct physical/electrical execution. The hardware operates 6 fully independent galvanically isolated channels that convert analog signals derived from resistance temperature detectors (RTDs) and low-level resistance sources into digitized data registers. By maintaining complete channel-to-channel and channel-to-bus electrical barriers, the card stops ground loop currents from destabilizing measurement values across the industrial grid.

Hardware Specifications

Parameter Specification
Model TC-IXR061
Brand Honeywell
Origin United States
Weight 1.30 kg (2.86 lbs) shipping allocation mass
Dimensions Standard Experion PKS chassis plug-in form factor
Operating Temp -20 to +55 deg C
Storage Temp -40 to +85 deg C
Power Dissipation 4.3 W maximum internal heat output loading
Number of Points 6 galvanically isolated channels
Module Update Rate 50 ms simultaneous sampling across all channels
Channel Bandwidth DC to 15 Hz (-3 dB point)
Open Wire Detection Triggered and logged within 5 seconds (forces out-of-range flag)
RFI Immunity Measurement error < 2.0% at 10 V/m field strength (27 to 1000 MHz span)
Associated Terminal TC_TBNH (20-position terminal block connection component)
Protection Class IP20

4-20 mA HART Loop Protocol and Channel-to-Channel Isolation

The Honeywell TC-IXR061 establishes rigorous channel-to-channel isolation parameters to handle low-voltage sensor values in transient-heavy processing sectors. The internal architecture matches these physical boundaries with an active analog front end that restricts signal coupling between processing tracks.

While built primarily for RTD resistance monitoring rather than active 4-20 mA HART loop protocol loops, the high-grade galvanic isolation design ensures that adjacent high-current loops do not leak charge across the input multiplexer arrays. The localized DC to 15 Hz low-pass filtering stage provides sharp attenuation of industrial frequency hum, sustaining stable temperature measurements even when sensor lines run adjacent to high-power distribution corridors.

Frequently Asked Questions

Q: How does the open-wire detection logic behave when an RTD lead snaps or breaks under stress?

A: The module applies a microscopic constant current to monitor lead wire integrity. If a conductor snaps or detaches, the circuit senses an infinite resistance condition and asserts an out-of-range error code onto the host platform registers within 5 seconds, notifying the master logic to trip appropriate sensor-fault interlocks.

Q: Can the TC-IXR061 accept mixed configurations of 2-wire, 3-wire, and 4-wire RTD sensors simultaneously across its 6 channels?

A: Yes. Because every channel features independent channel-to-channel isolation and dedicated pin processing maps, the module permits distinct wiring formats on each input terminal group, provided the correct resistance mapping templates are active in the controller's channel profile parameters.

Q: Does this module support live extraction and insertion (hot-swapping) while the Experion controller rack is under power?

A: Yes. The Experion PKS chassis includes active backplane pin alignment that allows the TC-IXR061 to be swapped out during active operations without shutting down processing power or disrupting data frames on adjacent I/O modules.

Field Installation Guidelines

  • Isolate all external sensor wiring loops from potential short circuits before plugging the input card into the chassis guide rails.
  • Slide the module into its assigned slot on the Experion PKS chassis frame, pushing backward until the rear multi-point connector block seats into the rack backplane assembly.
  • Mount the designated TC_TBNH 20-position terminal block onto the front interface of the module and secure the integration latches.
  • Terminate RTD field elements using high-quality shielded twisted cables, ensuring the shield braid links directly to the cabinet ground bar and is isolated at the sensor housing.
  • Maintain at least 30 cm of clearance between the RTD instrument signal wires and any high-voltage AC distribution circuits or variable speed drive conductors to preserve RFI immunity standards.
