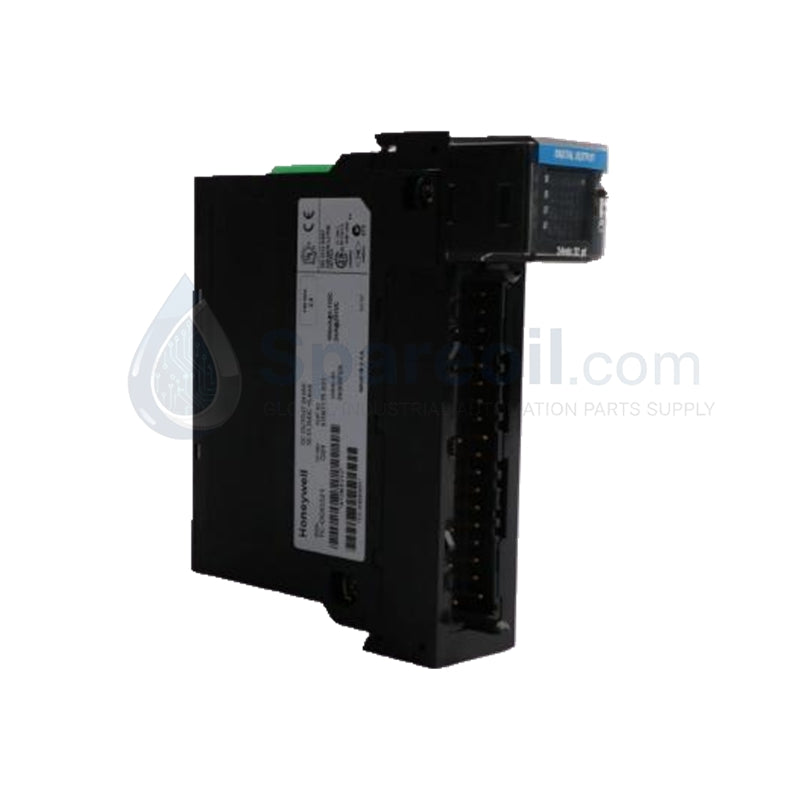

TC-ODD321 Honeywell Experion Series C Datasheet Technical Manual

Availability: 99 left in stock

Honeywell TC-ODD321 Experion Series C Digital Output Module The Honeywell TC-ODD321, also cataloged as the TC-ODD321 Digital Output Module, operates...

SKU: TC-ODD321

Manufacturer: Honeywell
Product No.: TC-ODD321
Product Type: Digital I/O Cards
Product Origin: USA
Payment:T/T, Western Union
Weight: 450g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Honeywell TC-ODD321 Experion Series C Digital Output Module

The Honeywell TC-ODD321, also cataloged as the TC-ODD321 Digital Output Module, operates as a dedicated hardware component for binary switching execution within Experion Process Knowledge System (PKS) Series C architecture networks. The module decodes internal logic frames transmitted across the system backplane and translates them into 32 discrete 24 V DC current-sourcing outputs. These independent channels drive field-side inductive and resistive elements, including solenoids, relays, contactors, and indicating lamps, by controlling current distribution from local power buses.

Hardware Specifications

Parameter	Specification
Model	TC-ODD321
Brand	Honeywell
Origin	United States
Weight	0.45 kg (1.00 lbs) nominal module mass
Dimensions	Standard Experion Series C I/O vertical module footprint
Operating Temp	-40 to +60 deg C continuous (storage rated from -40 to +85 deg C)
Power Consumption	6.1 W maximum internal power dissipation
Output Channels	32 (Arranged in 2 isolated groups of 16 channels)
Operating Voltage	10 to 31.2 V DC at 50 deg C continuous execution
Rated Output Current	0.5 A per point continuous maximum load capacity
Surge Current Capacity	1.0 A for 10 ms (Repeatable every 2 seconds)
Off-State Leakage Current	0.5 mA maximum across the voltage range
On-State Voltage Drop	1 V DC maximum at the rated current threshold
Fail-Safe Configurations	Software selectable per channel: ON, OFF, or Hold Last State
Required Terminal Block	TC-TBCH (36-position compression or screw terminal assembly)
Protection Class	IP20

Profinet / EtherNet/IP Deterministic Networks and I/O Density Scaling

The Honeywell TC-ODD321 optimizes high-density switching tasks by grouping 32 individual channels into two electrical blocks of 16 channels, each referencing a distinct common return path. The internal backplane interface synchronizes output image table updates directly with the controller task cycles under strict parameters regulated by backplane bus communication velocity licenses.

When integrating these outputs into hybrid plant frameworks featuring Profinet / EtherNet/IP deterministic networks via external interface gateways, the module maintains predictable transmission states without expanding communication jitter. This high density supports expanded I/O density scaling profiles within single enclosure footprints. It allows for the concurrent switching of continuous 0.5 A loads while maintaining predictable data frame transitions over the network link.

Frequently Asked Questions

Q: What deterministic routine does the TC-ODD321 execute upon a total loss of communication with the C300 controller? A: The module relies on an internal watchdog timer that continuously monitors communication timing. If link updates drop out beyond the configured safety window, the module isolates the control logic and commands each of the 32 channels to transition to its pre-defined fault-security state (ON, OFF, or Hold Last State).

Q: Does this module support live extraction and insertion (hot-swapping) inside an energized Series C I/O row? A: Yes. The mechanical and electrical interfaces of the Series C platform permit complete hot-swapping functionality. A technician can extract and replace a module without disrupting backplane power rails or affecting data transmission frames bound for adjacent I/O slots.

Q: How do the internal output transistors manage high-voltage inductive kicks generated by collapsing solenoid fields? A: The solid-state output structure incorporates rugged clamping diodes across every channel circuit. These components suppress inductive energy spikes up to the repeatable 1.0 A surge threshold, absorbing high dV/dt transients without requiring external flyback diodes on standard industrial contactor coils.

Field Installation Guidelines

Isolate all external field wiring power distribution links before mounting or mating the module to the active backplane.
Align the vertical housing with the specific slot positions on the Series C I/O carrier and press the unit backward until the mechanical retention latches click into position.
Mount the required 36-position TC-TBCH terminal block onto the carrier interface adjacent to the module to complete the physical connection.
Terminate all 24 V DC power loops using specified conductors, maintaining a single fused line for each 16-point common group to protect against aggregate overcurrent conditions.
Route all field-side actuator lines through vertical wire ways, preserving a minimum physical separation of 30 cm from high-voltage AC lines or motor supply circuits.
